Graphical conventions
The tutorial procedures in this guide use the following graphical conventions:

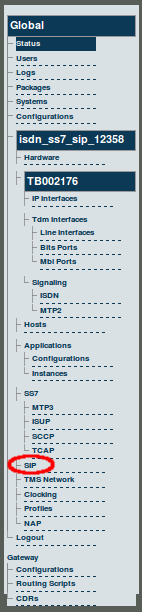

Navigation Panel launching point. The first step of each procedure presents a view of the navigation panel and highlights the required link to access a specific information panel. For example:
To configure a SIP stack, do the following:
Select SIP from the navigation panel.
Information Panel. All steps following the initial step of a procedure display graphics of the Web Portal by focusing specifically on the information panel. From another example:
2. Enter a name for the new SIP Transport Server
Enter a name for the SIP Transport Server
Select a port type
Enter a port number
Select the adapter that will host the SIP Transport server
Enter the IP Interface
Click 'Create' to save the changes
