Creating BITS Ports as a Clocking Source

To Create a BITS Clocking Source

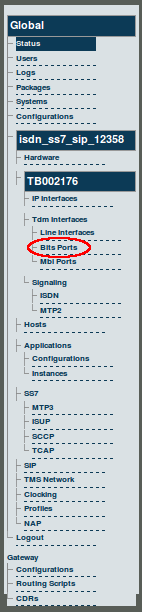

1. Select 'BITS Ports' from the navigation panel.

Navigation Panel v2.3 BITS

2.Click 'Create New BITS Port', to access the BITS Ports configuration window.

Menu create new bits port

3. Enter a name for the BITS port.

• Select a Local Index

• Select a Port Type (E1/T1/J1)

• Click 'Create'

Screenshot create new bits port

4. The BITS Port was successfully created message is displayed.

Screenshot new bits port success

Verifying Status

To verify the status of the BITS ports, either select Status from the Navigation panel or select the Status tab in the Information panel.
