Creating a SIP Signaling Stack

To configure an SIP stack

1. Select 'SIP' from the navigation panel.

Navigation Panel v2.3 SIP

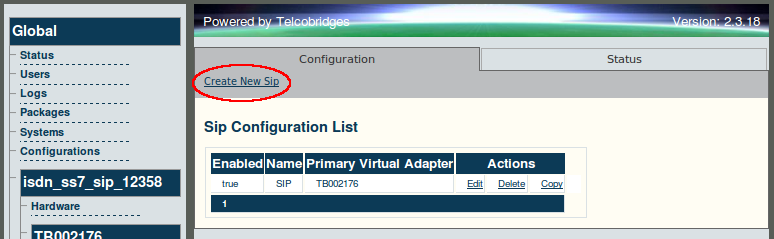

1. Click 'Create New SIP' from the information panel.'''

Web Portal v2.3 Create New SIP

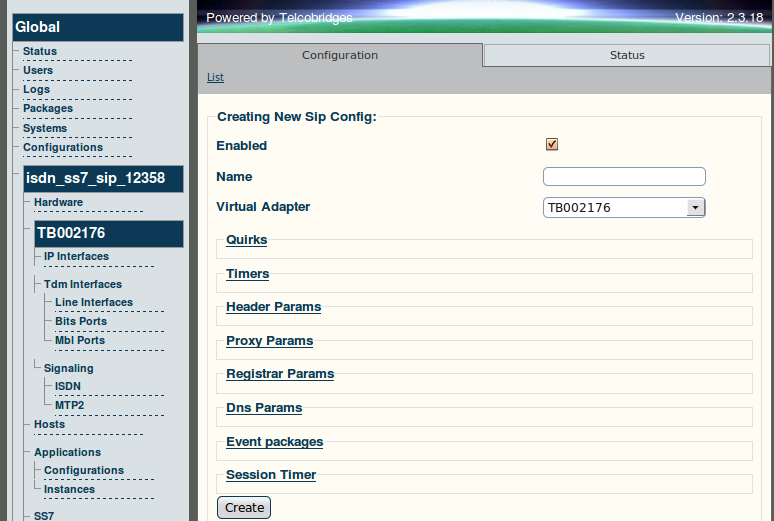

3. Enter a name for the SIP configuration.

• Enter a name for the SIP Configuration stack

• Select the Tmedia unit that will host SIP signaling

• Click Create, to save the changes

Web Portal v2.3 Creating New SIP

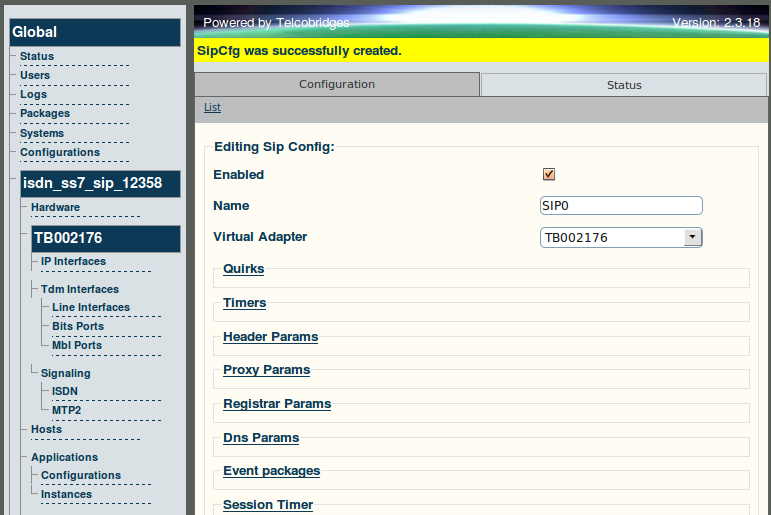

4. Verify that the message SipCfg was successfully created is displayed.

Web Portal v2.3 SIP Created
