Create an MTP3 Configuration

The creation of an MTP3 configuration is done once to serve the entire Tmedia system. It allows for access configuration to the MTP3 network.

To Create an MTP3 Configuration

1. Select MTP3 from the navigation panel.

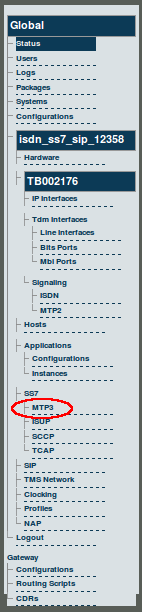

Navigation Panel v2.3 MTP3

2. Provide a name for the MTP3 configuration

• Click "Save" to save the settings

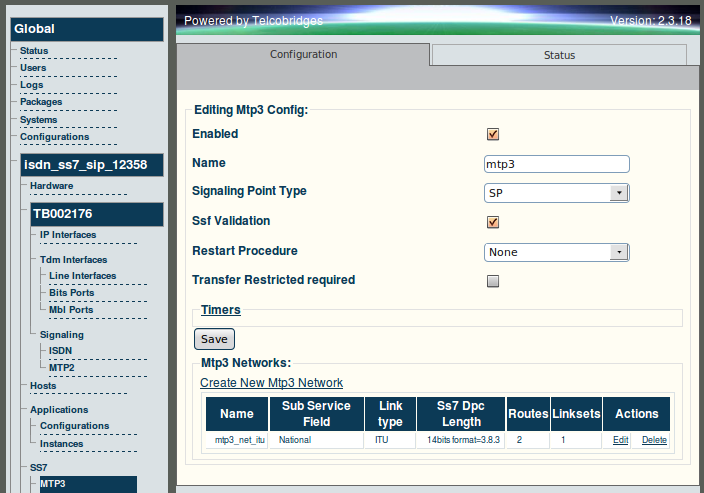

Web Portal v2.3 Creating New MTP3

3. Verify that the 'MTP3Cfg was successfully updated' message appears.

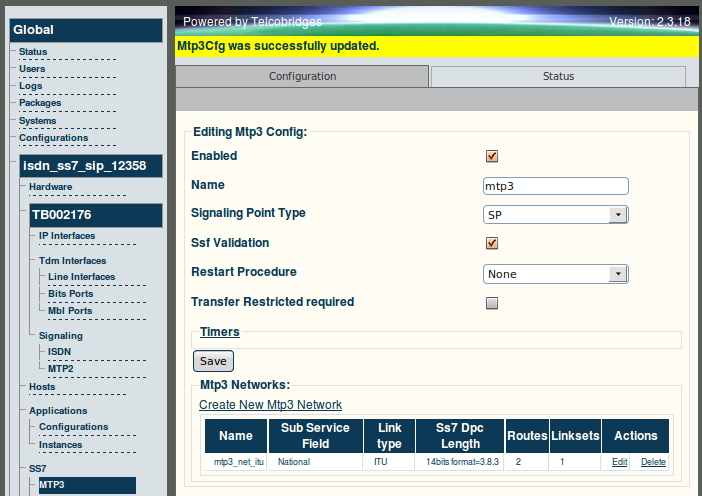

Web Portal v2.3 MTP3 Created
