Configuring DNS Parameters

Note: In order for the DNS server traffic to route to the DNS server, the IP port and transport server must be set.

To configure the DNS parameters

1. Click DNS Params in the SIP configuration window.

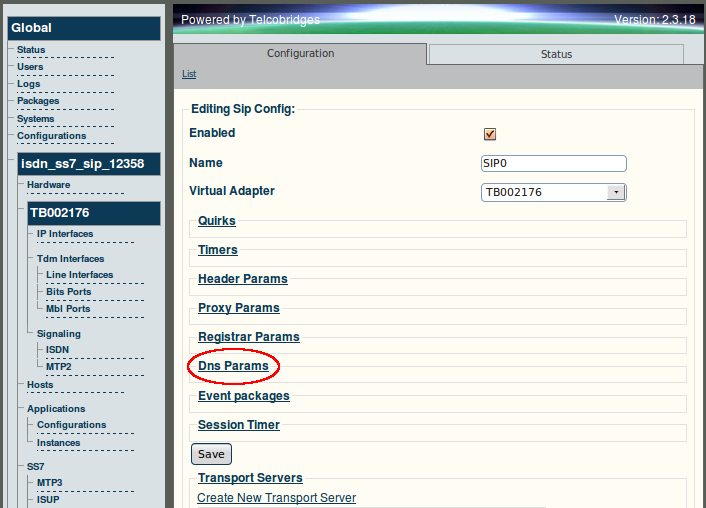

Web Portal v2.3 SIP DNS Params

2. Enter the IP address of the DNS.

• Select the transport server

• Click Save to store your settings

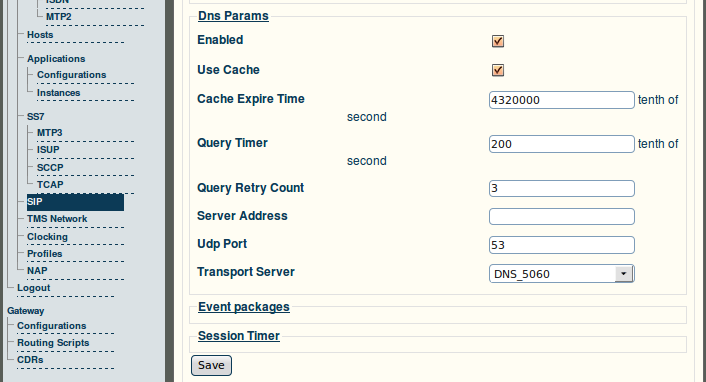

Web Portal v2.3 SIP DNS Params 2

• Verify that the 'SipCfg was successfully updated' message is displayed.

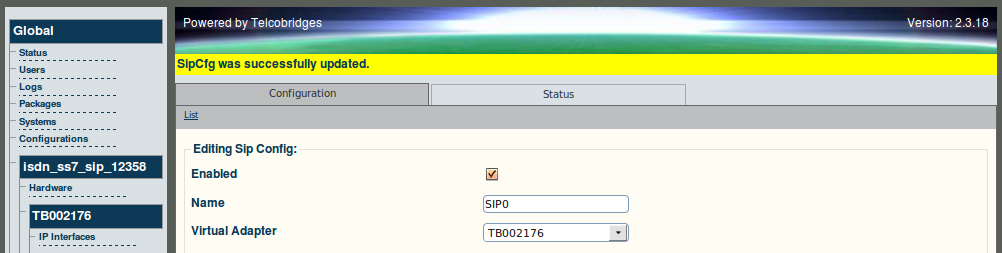

Web Portal v2.3 SIP DNS Params Success
