Create an SCCP Userpart

The Userpart is the container for the multiple SCCP interfaces. One Userpart is required for each protocol variant.

multiple SCCP userpart can be instantiated within a single SCCP protocol layer. This allows a user application to interface with multiple SS7 SCCP protocol variants at the same time. Only one SCCP userpart is required for a specific variant as it can be assigned to multiple SCCP networks.

A Userpart can easily be seen as a protocol variant that a host application wants to use on the SS7 network.

To Create an SCCP User Part

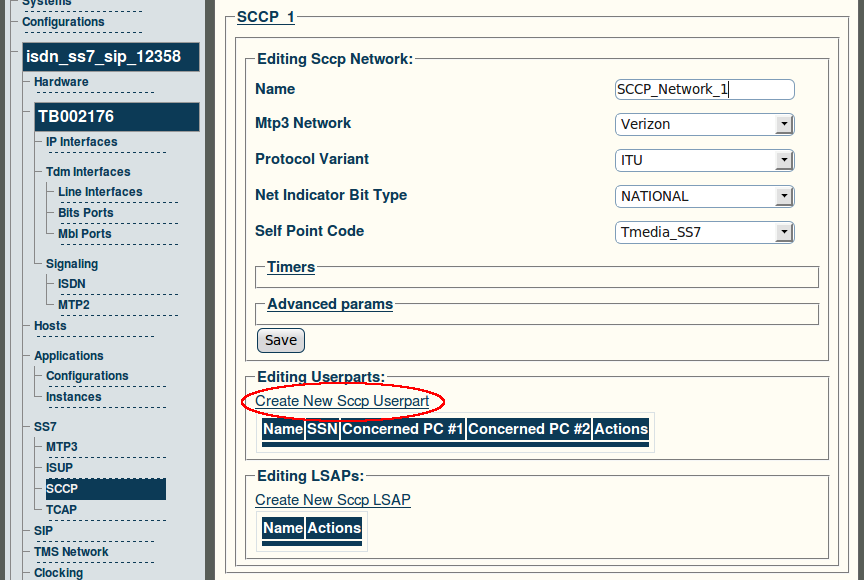

1. Click 'Create New SCCP User Part' to access the SCCP configuration window.

Web Portal v2.3 Create SCCP User Part

2. Enter a name for the SCCP user part.

• Select a protocol variant

• Click 'Create' to save the changes

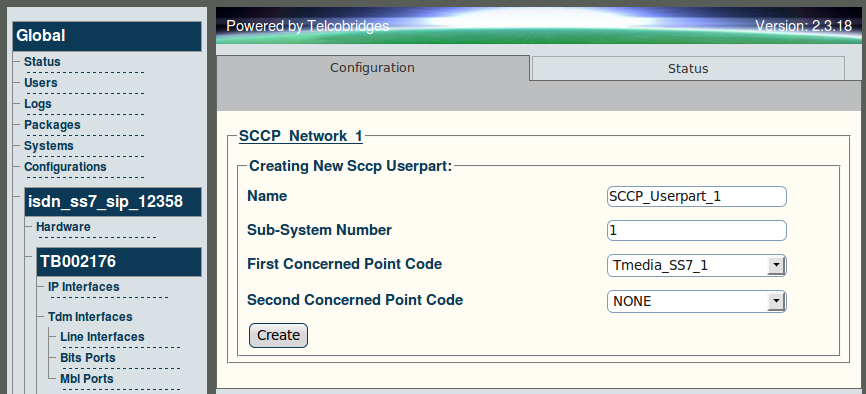

Web Portal v2.3 Creating SCCP User Part

3. Verify that the 'SCCP Userpart was successfully created' message appears.

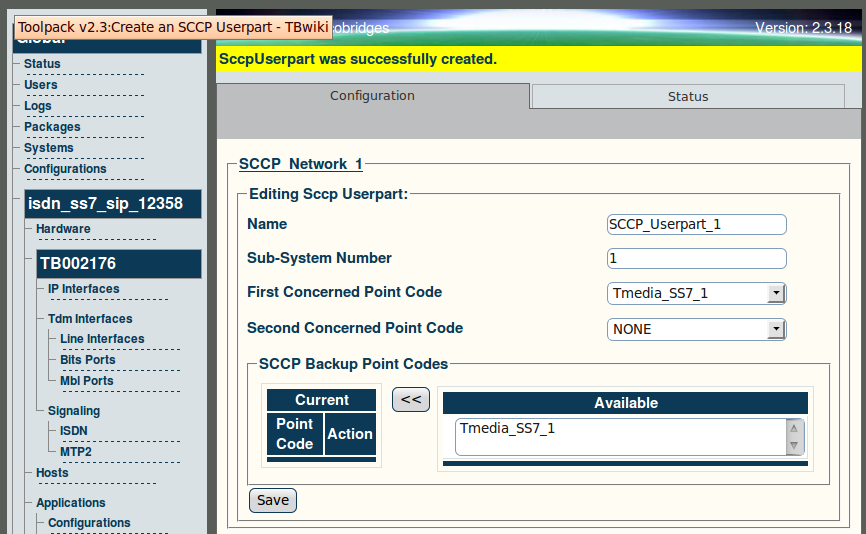

Web Portal v2.3 SCCP User Part Created

4. Set an SCCP Backup Point Code

• Select a point code from the menu

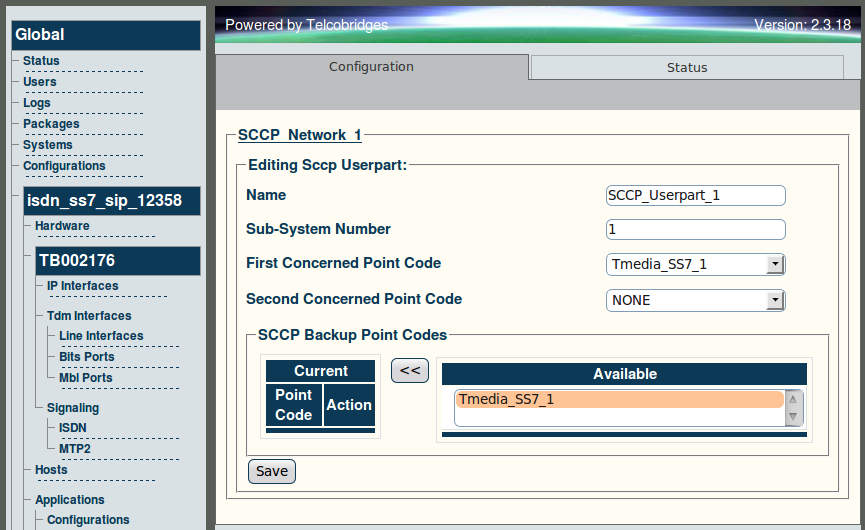

Web Portal v2.3 SCCP Backup Point Code

• Add the selection using the '<<' arrow button

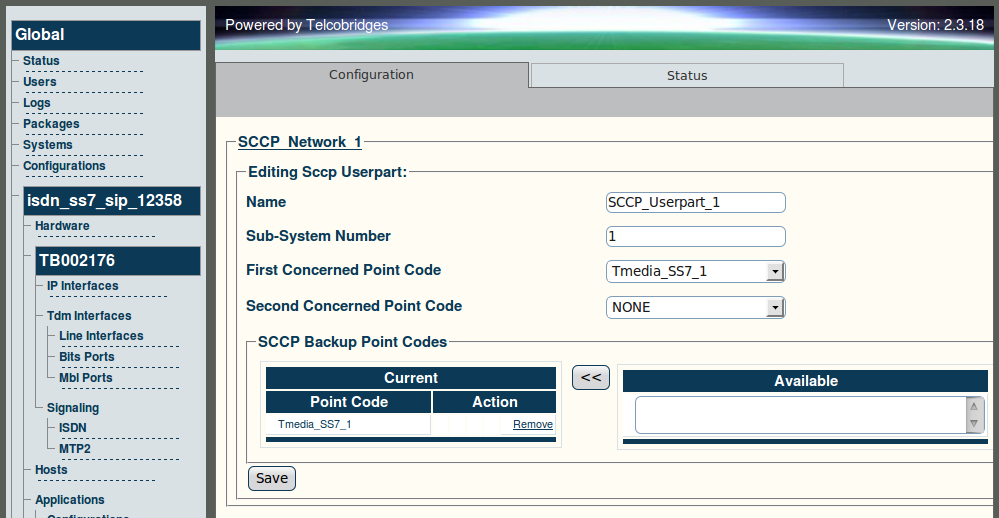

Web Portal v2.3 SCCP Backup Point Code 2

• Click 'Save'

• Verify that the 'SccpUserpart was successfully updated' message appears

Web Portal v2.3 SCCP Backup Point Code 3
