Create an SCCP Stack

To create an SCCP stack

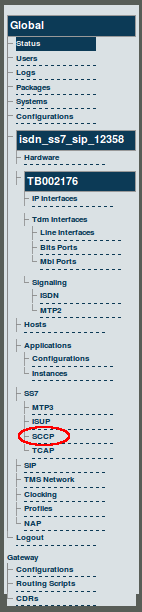

1. Select SCCP from the navigation panel.

Navigation Panel v2.3 SCCP

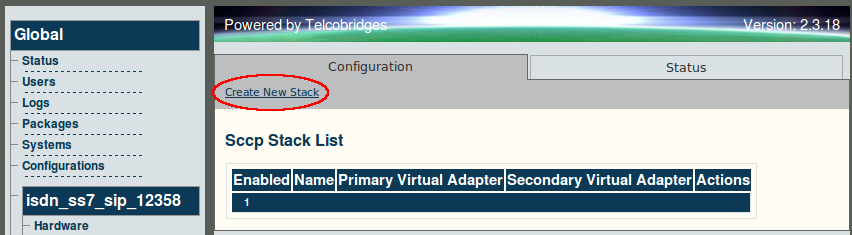

**2. Click 'Create New Stack' **

Web Portal v2.3 Create SCCP

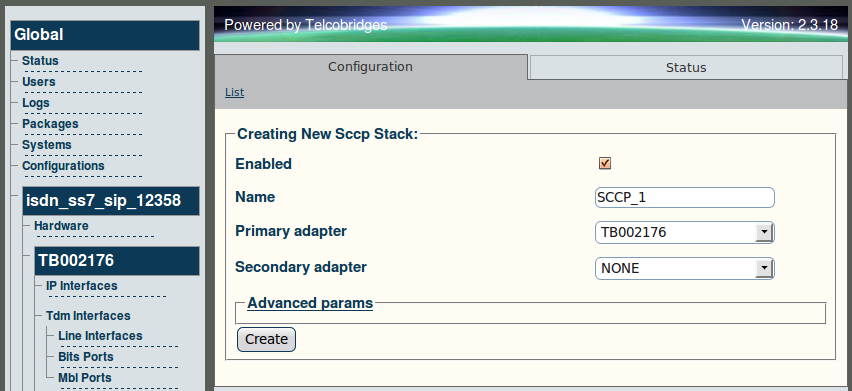

3. Provide a name for the SCCP stack

• Select one Tmedia unit as the primary to run the SCCP stack for the Tmedia network.

• Select another Tmedia unit as the secondary unit to run the SCCP stack

• Click 'Create' to save the SCCP stack

Web Portal v2.3 Creating SCCP

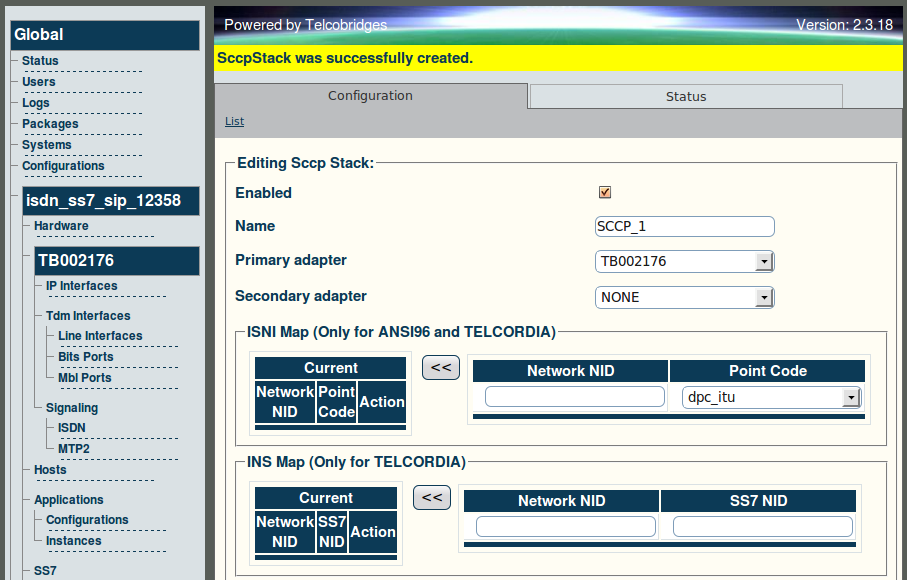

4. Verify that the 'SCCP Stack was successfully created' message appears.

Web Portal v2.3 SCCP Created
