Create an SCCP SSN

To Create an SCCP SSN

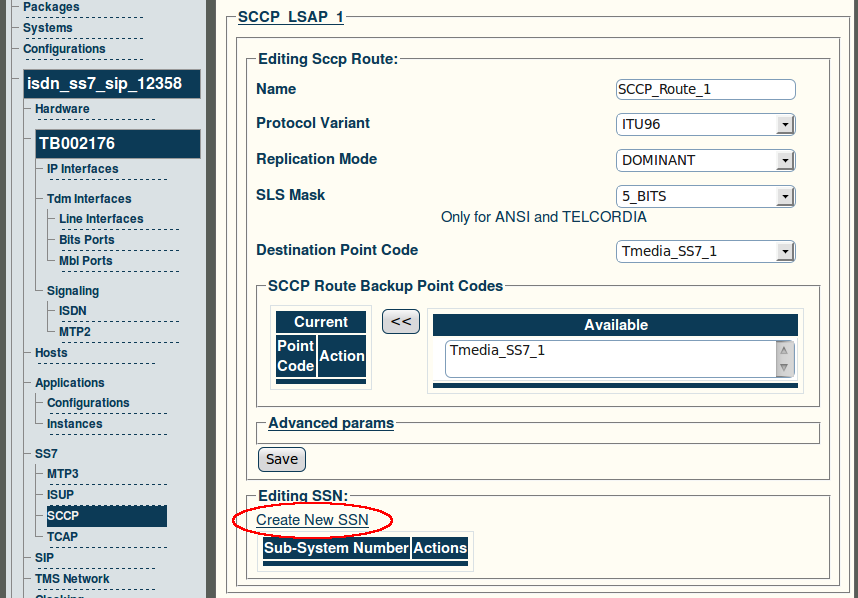

1. Click 'Create New SSN' from the SCCP route configuration window

Web Portal v2.3 Create SCCP SSN

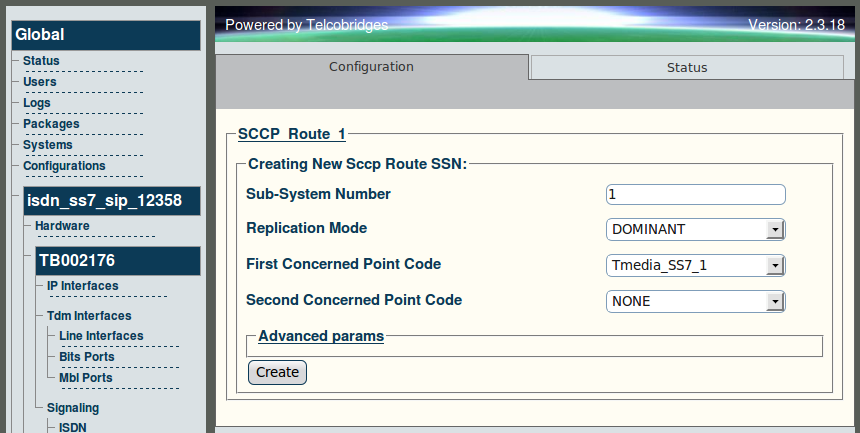

2. Configure the new SCCP SSN

• Choose a sub-system number

• Select a replication mode

• Select the first concerned point code

• Select the second concerned point code

• Click 'Create'

Web Portal v2.3 Creating SCCP SSN

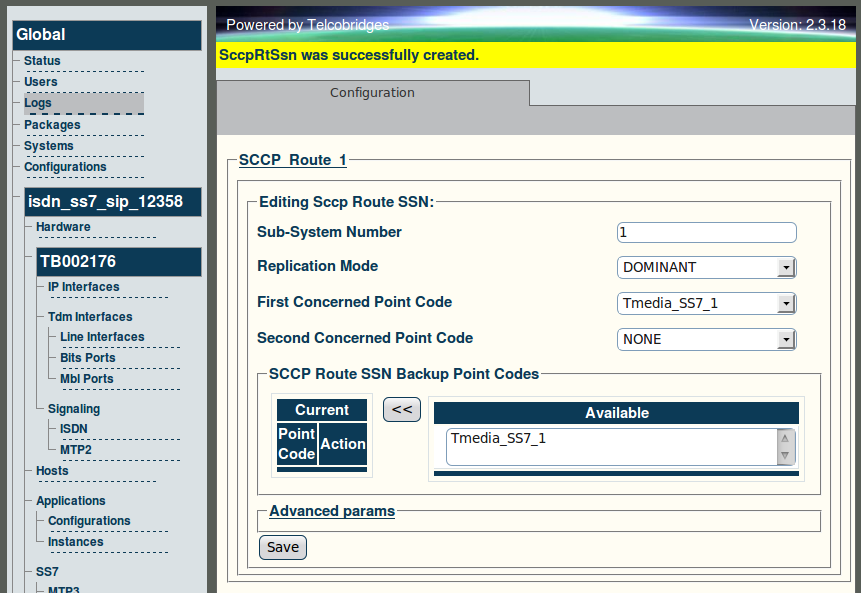

3. Verify that the 'SccpRtSsn was successfully created' message appears

Web Portal v2.3 SCCP SSN Created
