Create an SCCP Route

To Create an SCCP Route

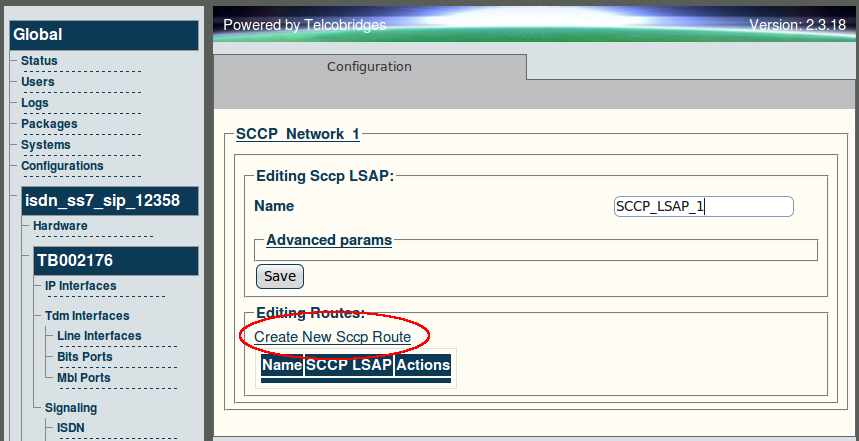

1. Click 'Create new Sccp Route' from the SCCP LSAP configuration window

Web Portal v2.3 Create SCCP Route

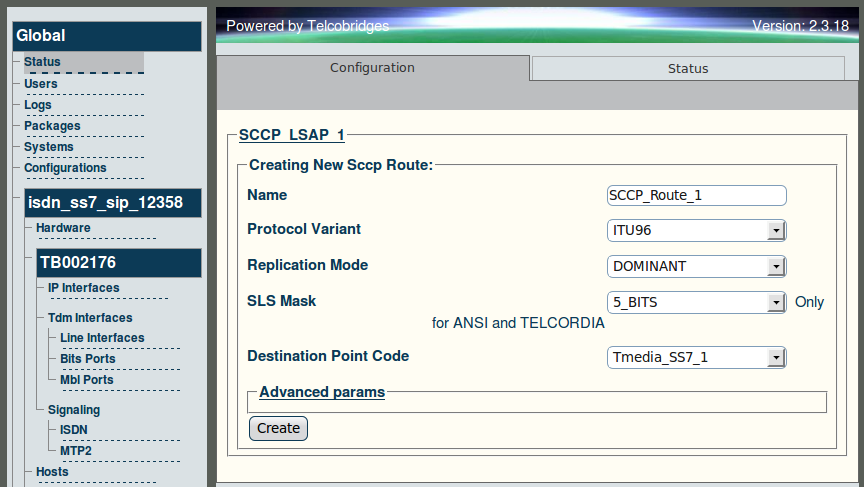

2. Configure the new SCCP Route

• Choose a name for the new route

• Select a protocol variant

• Select a replicant mode

• Select an SLS mask

• Select a destination point code

• Click 'Create'

Web Portal v2.3 Creating SCCP Route

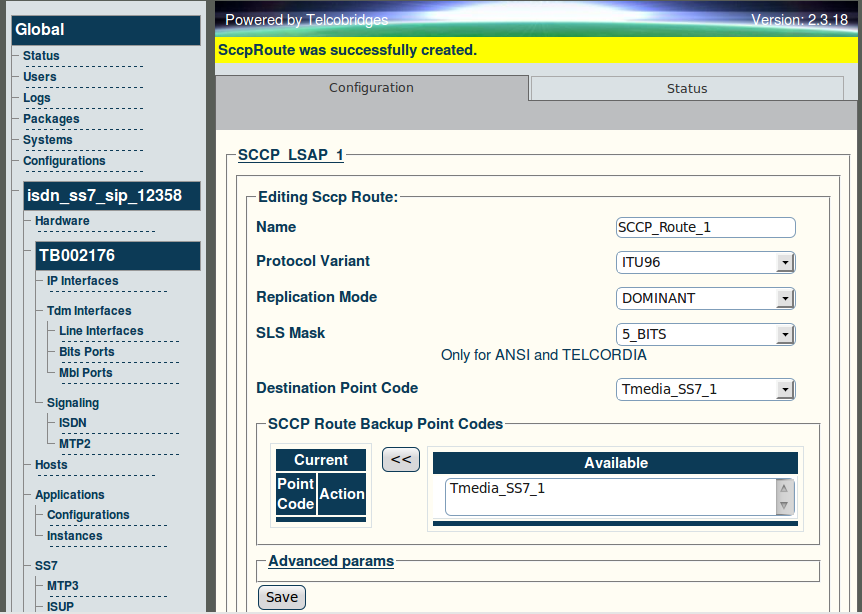

3. Verify that the 'SccpRoute was successfully created' message appears

Web Portal v2.3 SCCP Route Created
