Create an SCCP GTT Association

To Create an SCCP GTT Association

1. Click 'Create New Sccp GTT Association' from the SCCP stack configuration window

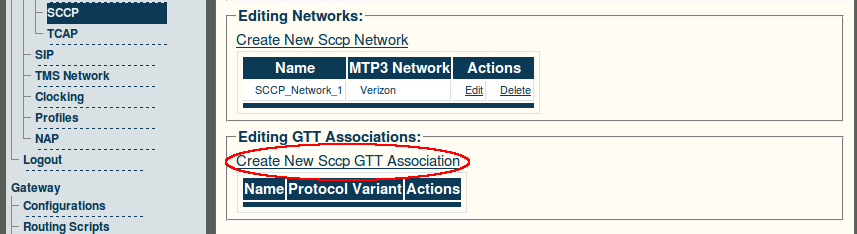

Web Portal v2.3 Create SCCP GTT

2. Configure the new SCCP GTT

• Choose a name for the new GTT association

• Select a protocol variant

• Select a format type

• Select an SCCP network

• Click 'Create'

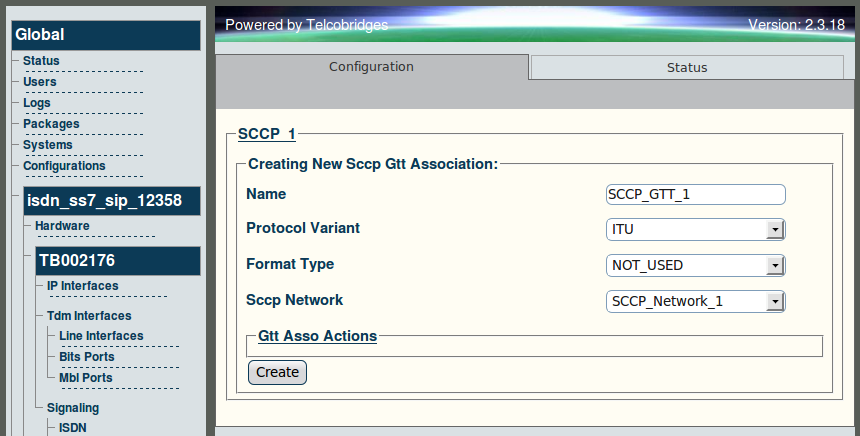

Web Portal v2.3 Creating SCCP GTT

3. Verify that the 'SccpRtSsn was successfully created' message appears

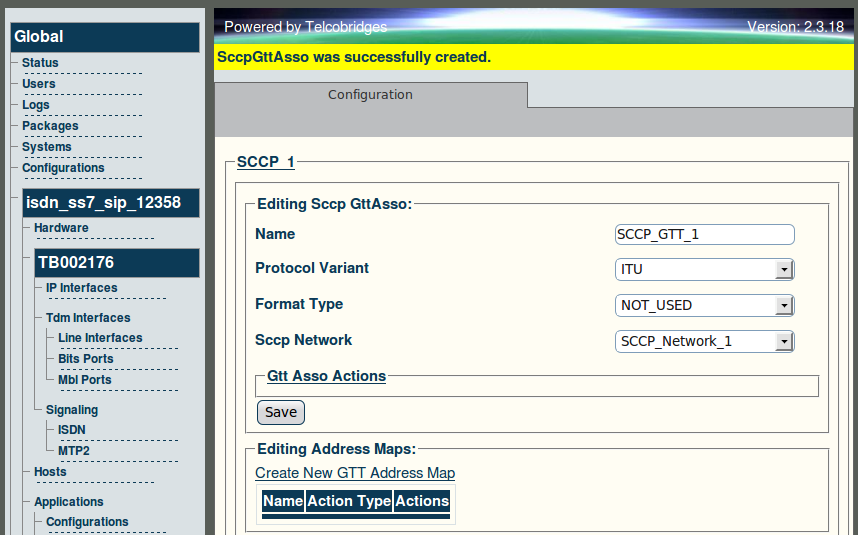

Web Portal v2.3 SCCP GTT Created
