Create an SCCP GTT Address Map

To Create a GTT Address Map

1. Click 'Create New GTT Address Map' from the GTT association configuration window

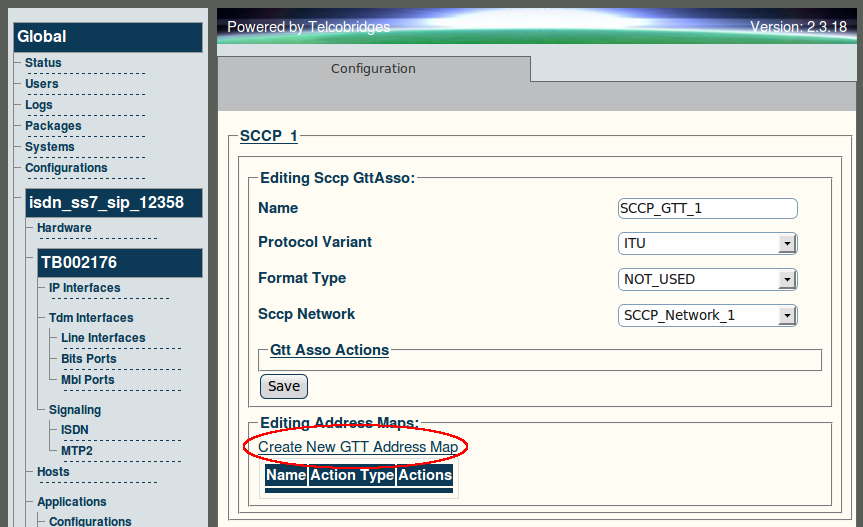

Web Portal v2.3 Create SCCP GTT Map

2. Configure the new GTT address map

• Choose a name for the map

• Choose an SCCP address for the global title

• Choose a sub-system number for the entity

• Choose an SCCP address for the entity global title

• Click 'Create' to save the configuration

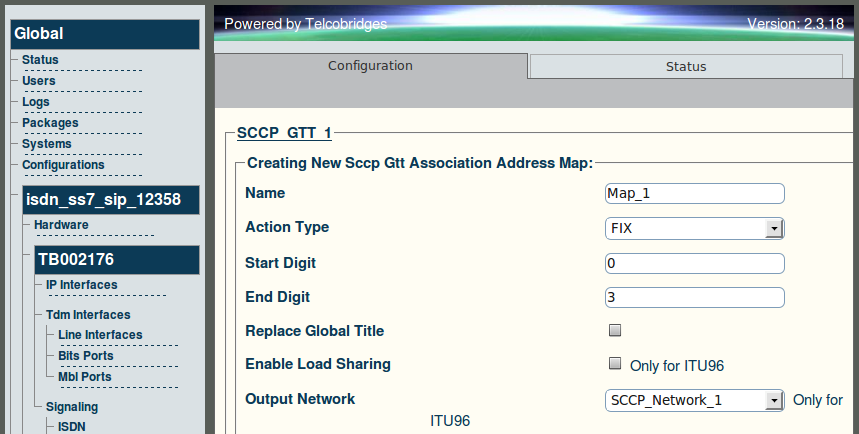

Web Portal v2.3 Creating SCCP GTT Map

3. Verify that the 'SccpGttAssoAddrMap was successfully created' message appears

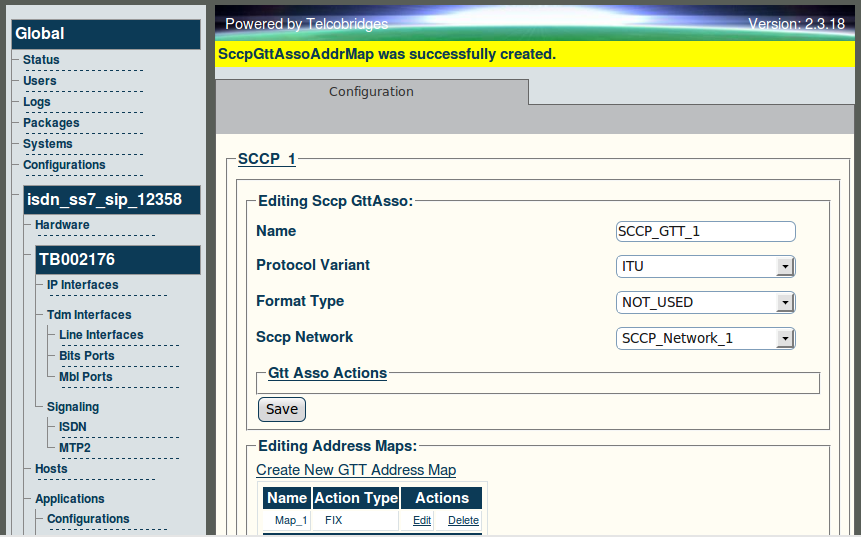

Web Portal v2.3 SCCP GTT Map Created
