Create a TCAP Stack

To create a TCAP stack

1. Select TCAP from the navigation panel.

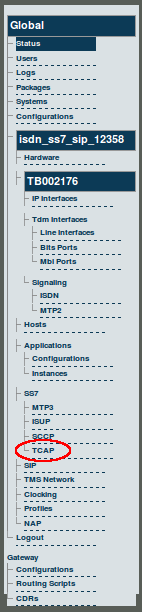

Navigation Panel v2.3 TCAP

**2. Click 'Create New Stack' **

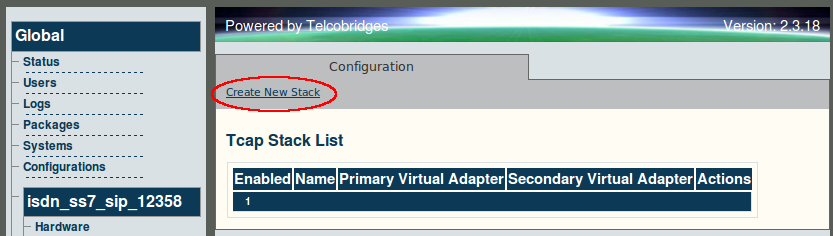

Web Portal v2.3 Create TCAP

3. Provide a name for the TCAP stack

• Select one Tmedia unit as the primary to run the TCAP stack for the Tmedia network.

• Select another Tmedia unit as the secondary unit to run the TCAP stack

• Click 'Create' to save the TCAP stack

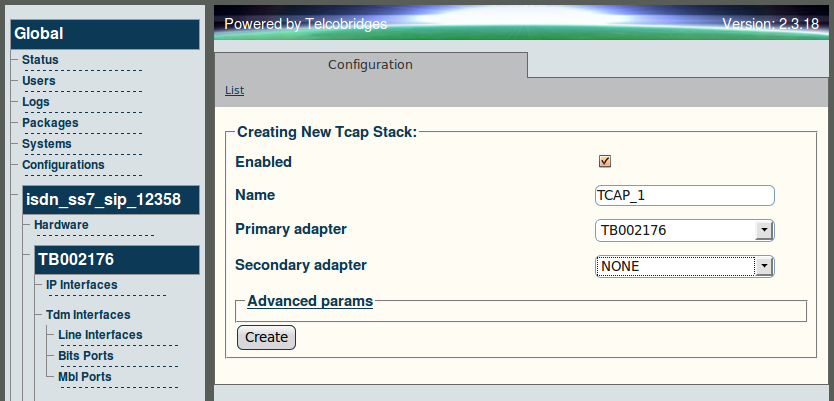

Web Portal v2.3 Creating TCAP

4. Verify that the 'TcapStack was successfully created' message appears.

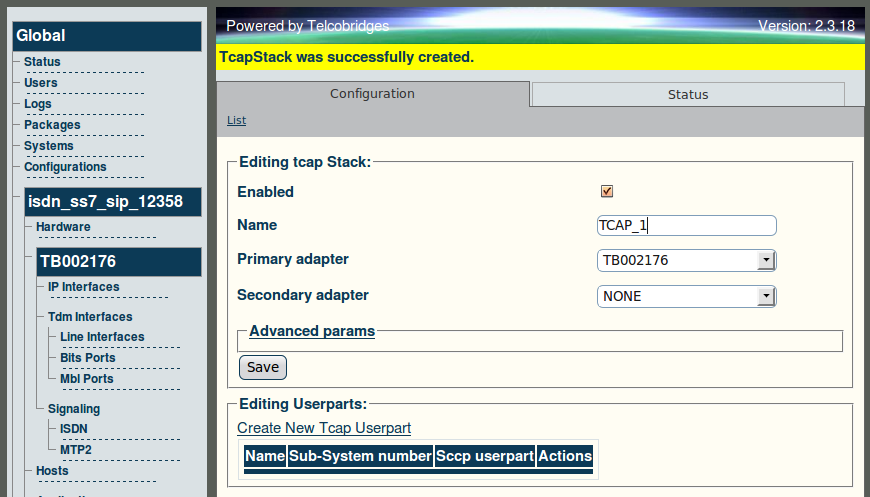

Web Portal v2.3 TCAP Created
