Configuring IP Interfaces v2.3

The IP interface of the VoIP0 and VoIP1 ports can be configured by setting the following:

• IP Address

• Netmask

• Gateway

To configure a VoIP0 or VoIP1 port

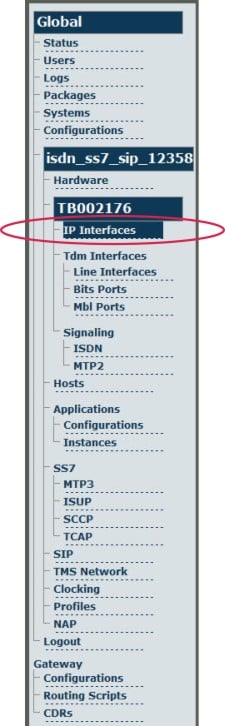

1. Select IP Interfaces from the navigation panel.

Configuring IP Interfaces V2.3 0

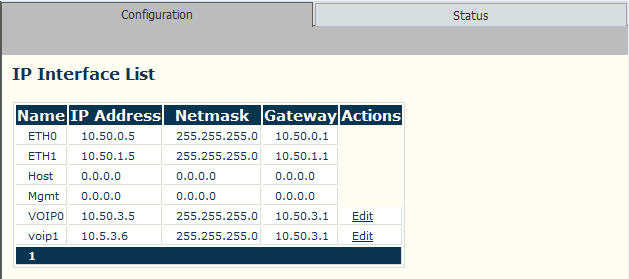

2. Click 'Edit' from the IP Interfaces Information panel.

Configuring IP Interfaces V2.3 1

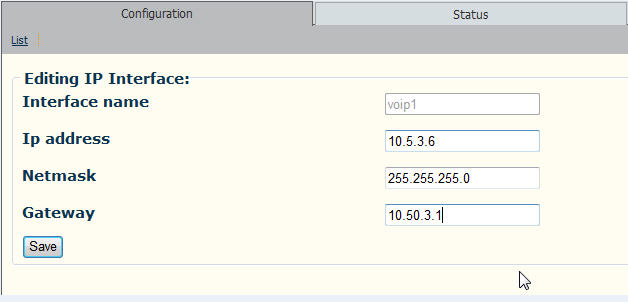

3. Enter an IP address, a Netmask, and a gateway address.

Note: the IP addresses of ETH0, ETH1, VOIP0 and VOIP1 must be on different subnets

Configuring IP Interfaces V2.3 2

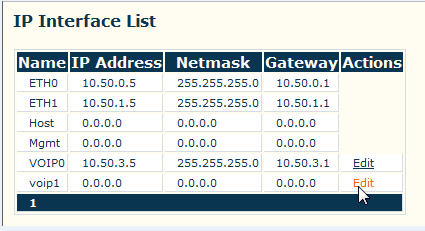

4. The changes are displayed in the IP interfaces information panel.

Configuring IP Interfaces V2.3 3

Note: To apply the IP configuration change, activate the current configuration, and then reboot the adapter.
