Verify the Status of the OC3 Line Interface

Verify the Status of the OC3 Line Interface

1. Select Line Interface from the Navigation panel.

• Click the Status tab to view the line interface status

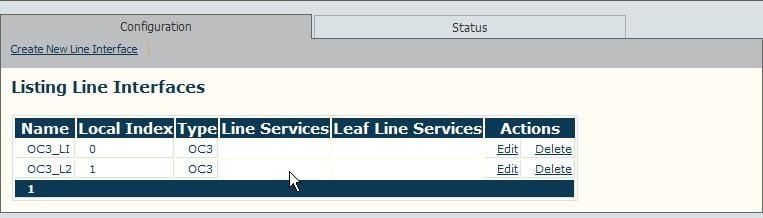

Screenshot listing line interfaces

2. Verify that alarms do not appear.

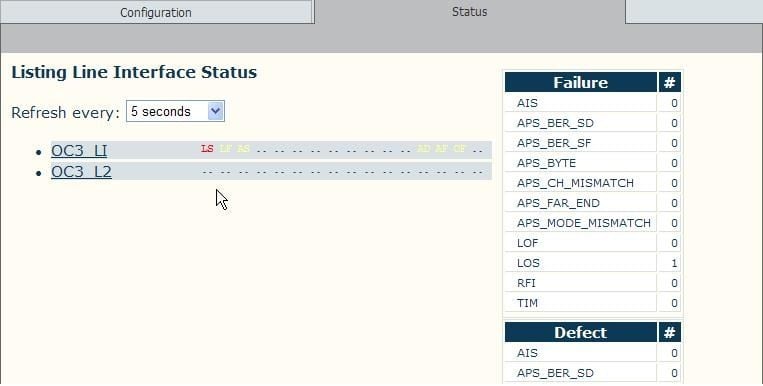

Screenshot verify alarms not appear

**Note: **In this example a LF (Loss of frame), and LS (Loss of Signal) alarm appear on the switchover link because it is not connected.

Verifying Status

To verify the status of a line interface, either select Status from the Navigation panel or select the Status tab in the Information panel.
