Creating a Transport Server

Note: In order to employ SIP transport servers, the protocol that they will use to transport the SIP signaling traffic must be defined.

To create a transport server

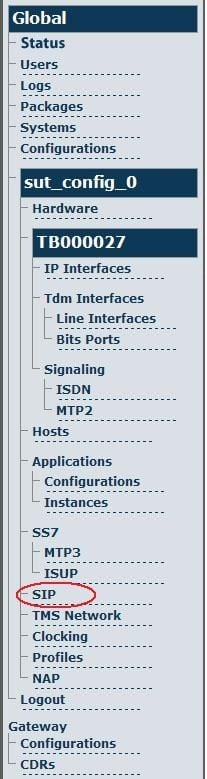

1. Select SIP from the navigation panel.

Menu SIP

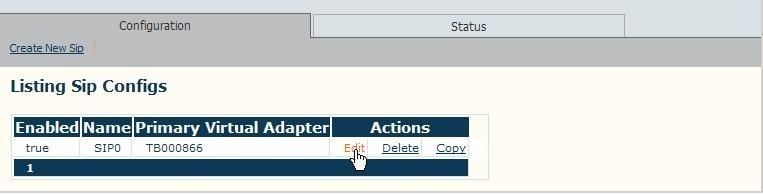

2. Select a SIP configuration and click 'Edit'.

Screenshot list existing SIP configs

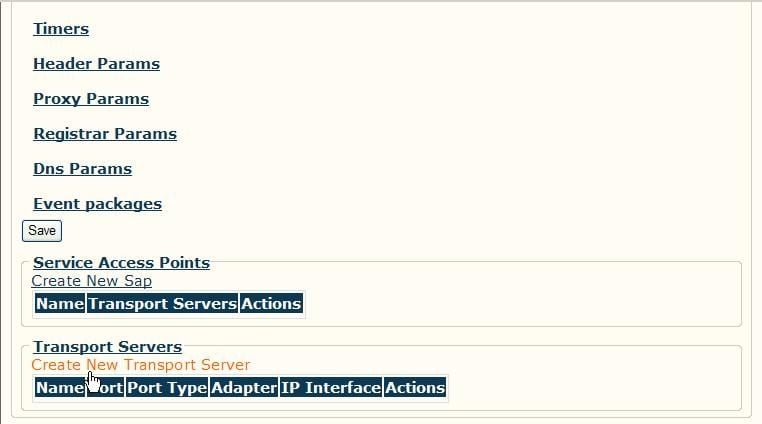

3. Click 'Create New Transport Server' from the SIP Configuration window.

Screenshot create new transport server

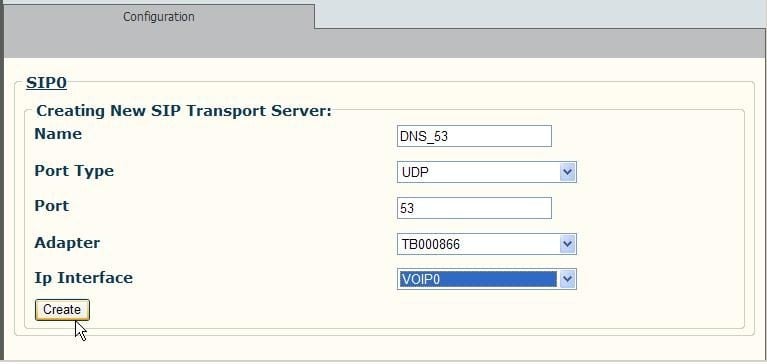

4. Enter a name for the transport server.

• Select a port type and number. This example uses UDP, port 53 for SIP traffic to the DNS server.

• Click 'Create' to save changes.

Screenshot click create transport servere

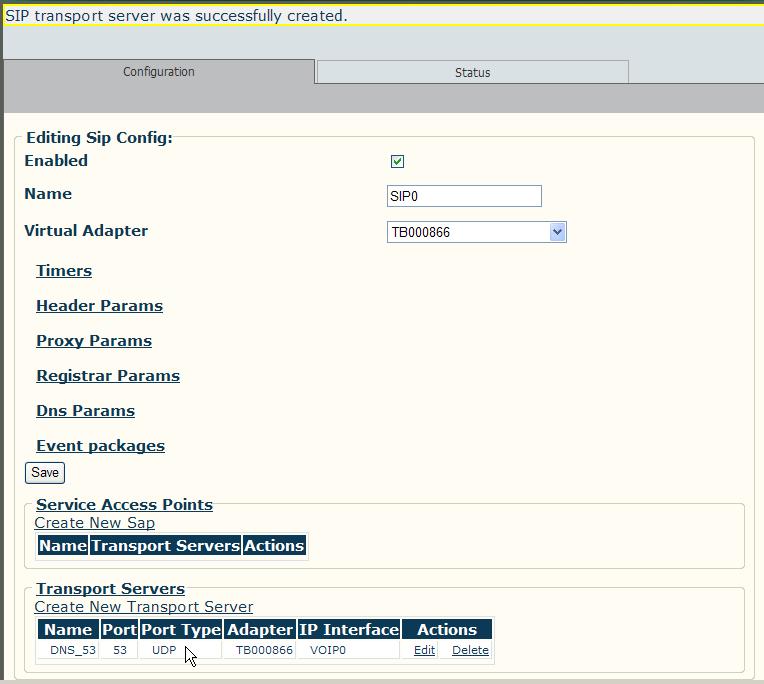

5. Verify that the new transport server is listed in the Transport Servers list.

Screenshot success create new transport server

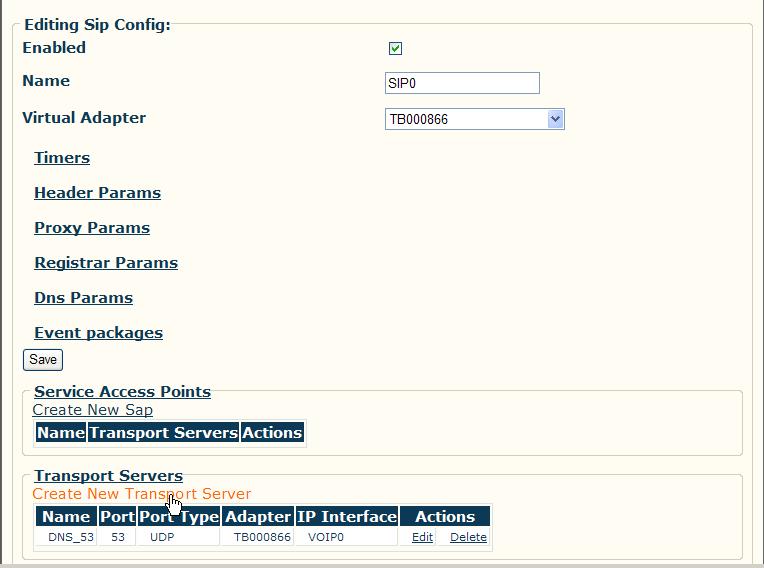

6. Click 'Create New Transport Server' to create a new transport server.

Screenshot create new transport server 2

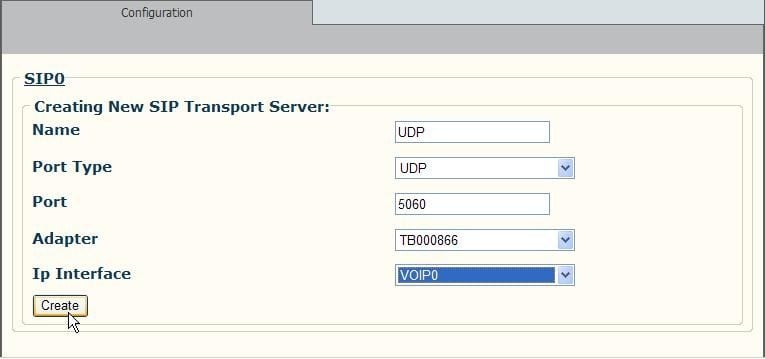

7. Create an additional transport server.

• Enter a name for the transport server

• Enter a port type and port number. In this case, select 5060 as the default SIP port.

• Click 'Create' to save the configuration changes.

Screenshot click create 2nd transport server

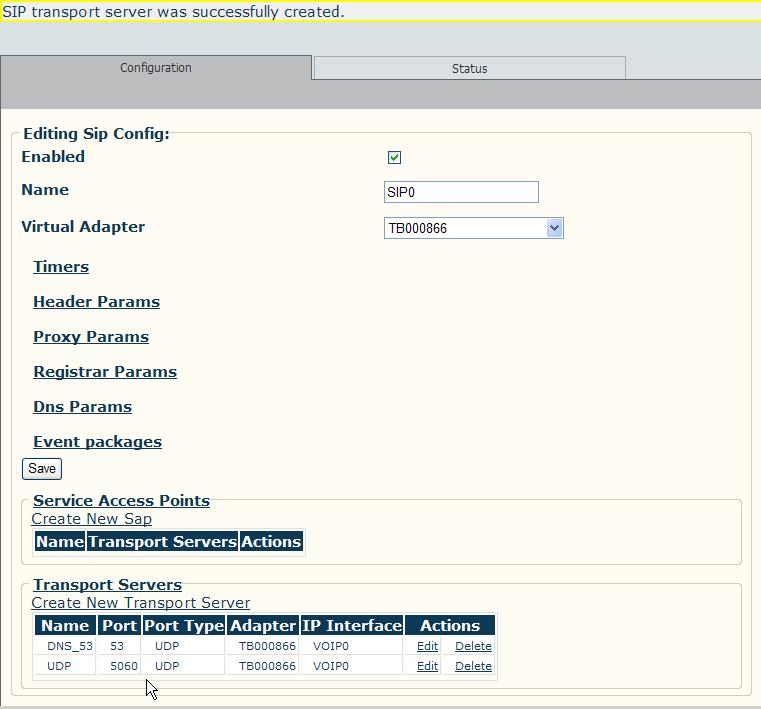

8. Verify that the new SIP transport server appears in the Transport Servers list.

Screenshot multiple transport servers configured
