Creating a SIP Profile

To create a SIP profile / system resource profile

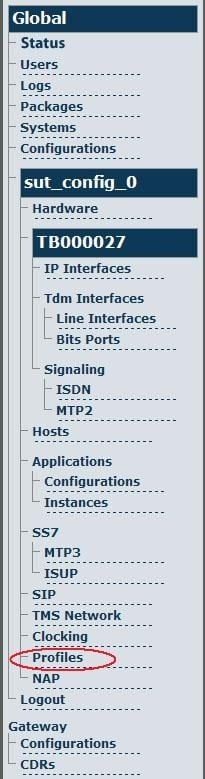

1. Select Profiles from the navigation panel.

Menu profiles

2. Click 'Create New Profile' from the information panel.

Screenshot create new profile

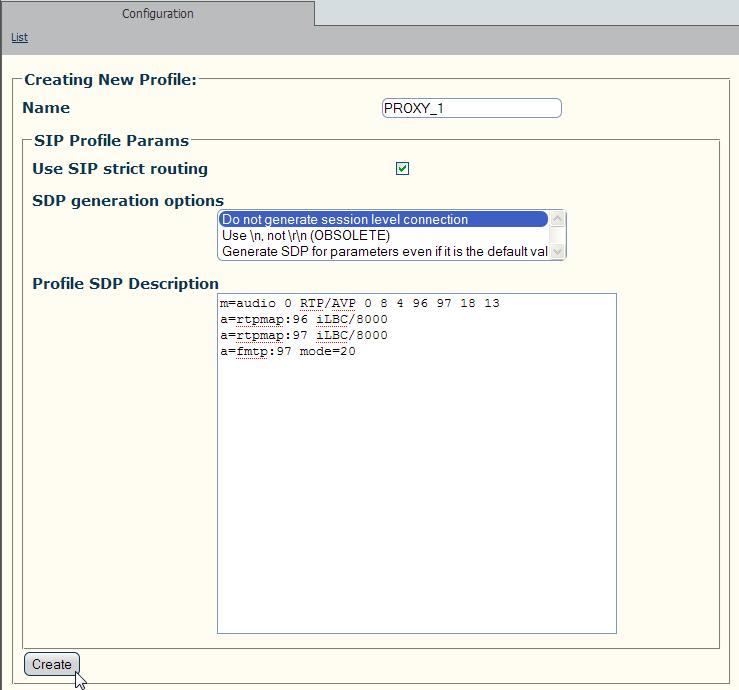

3. Enter a name for the profile. In this example PROXY_1 is entered.

• Select a SDP generation option. The SDP description appears in the Profile SDP window.

• You may input a customized Profile SDP Description to define which codecs are allowed.

• Click 'Create' to save the changes

Screenshot configuration options SIP profile

4. Select one or more DTMF relay schemes.

• Select one or more DTMF schemes then click the << button to assign them to the current profile

• Click 'Save'

Screenshot DTMF relay schemes

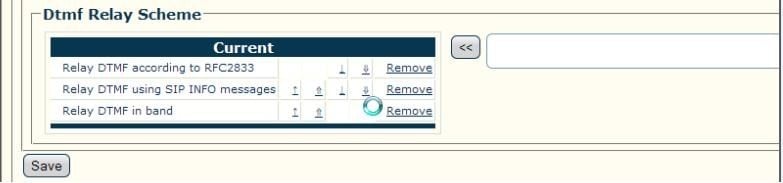

5. Validate the preferred order of DTMF relay schemes.

• Use the up and down arrow keys to set the preferred order of the DTMF relaying scheme.

• Click 'Save'

Screenshot reorder DTMF relay schemes

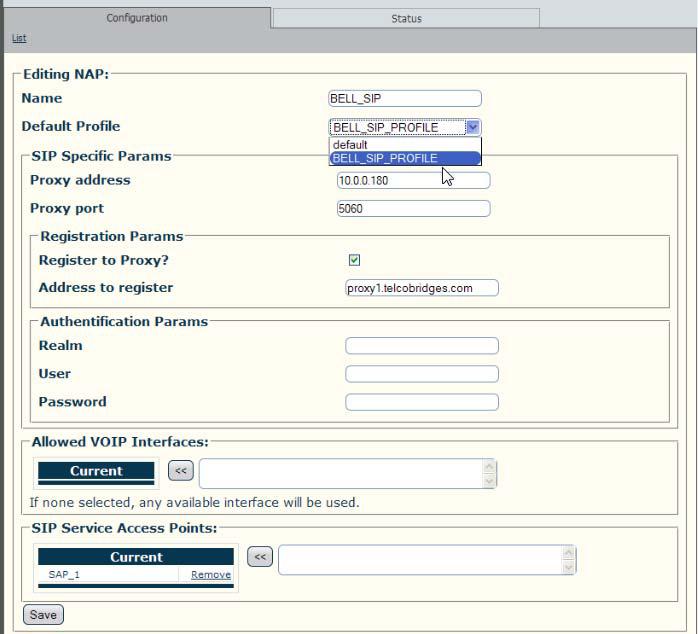

Note: Once a profile has been created, it can be assigned to one or more NAPs. See the figure below for an example:

Screenshot assigning SIP profiles to NAPs
