Creating a SAP

Note: The Service Access Point is used to bind the SIP stack with a transport server. Depending on the system configuration, multiple SAPS can be configured.

To create a SAP

1. Click 'Create New SAP' from the SIP configuration window.

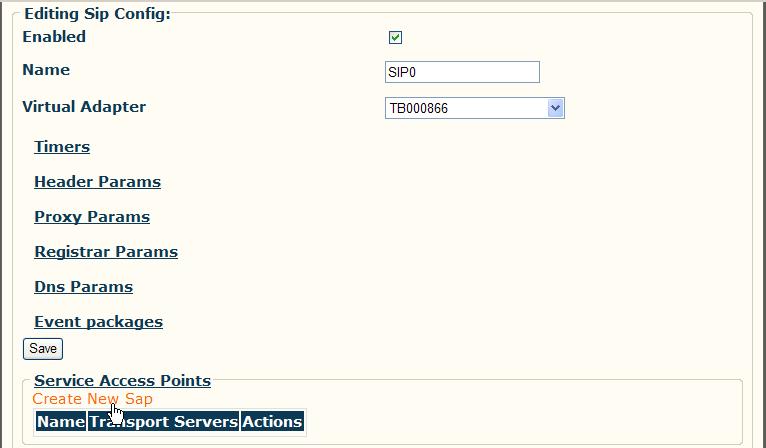

Screenshot create new SAP

2. Enter a name for the SAP.

• Click Create to save the settings

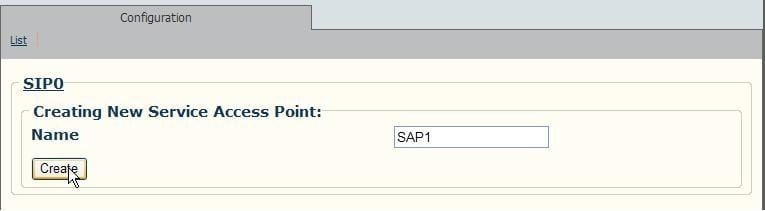

Screenshot create name for new SAP

3. Click the name of a transport server then use the << button to assign it to the newly created service access point.

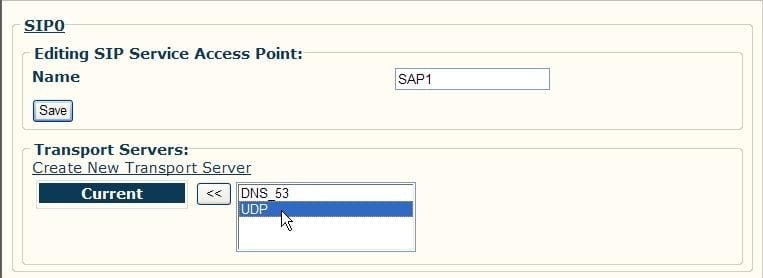

Screenshot assign transport server to SAP

4. Verify that the transport server has been added to the Current list.

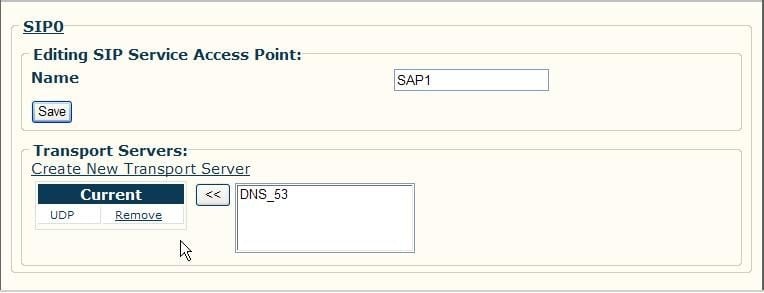

Screenshot verify transport server in current list

Verifying Status

To verify the status of the SIP stack, either select Status from the Navigation panel or select the Status tab in the Information panel.
