Creating a NAP

The Network Access Point (NAP) allows for SAPs, ISDN stacks, and SS7 ISUP interfaces to be associated as a combined resource for one type of access. A NAP is used to represent a collection of voice endpoints, for example: a group of SS7 CICs, ISDN controlled timeslots, SIP outgoing proxy to a specific provider, and more. (SAPs are, later in the configuration process, used to define how calls are routed out of the Tmedia system.)

In the example that follows, a Network Access Point is set for an ISP and another NAP is set for circuit-switched voice.

To create a Network Access Point

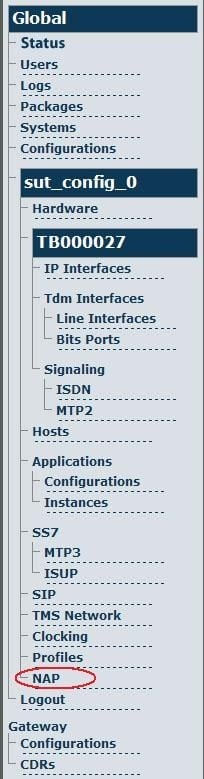

1. Select 'NAP' from the navigation panel.

Menu NAP

2. Click 'Create New NAP' to access the NAP configuration window.

Screenshot create new NAP

3. Provide a name for the NAP.

• Click 'Create' to initialize the NAP.

Screenshot confirm new NAP

4. Verify that the 'NAP was successfully created' message appears.

Screenshot new NAP successful

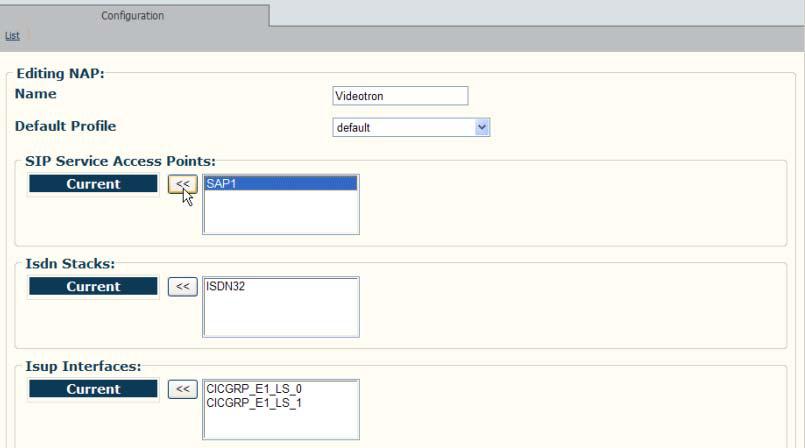

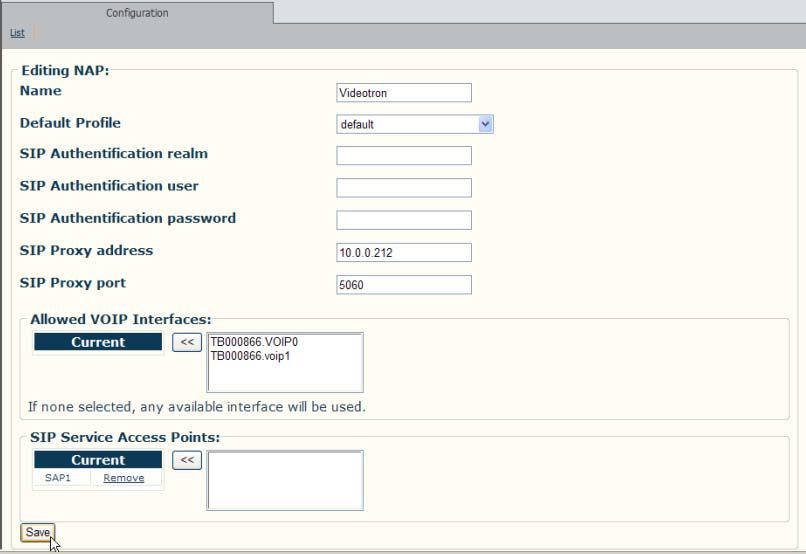

5. Use the << button to associate either a SAP, ISDN stack, or ISUP interface with the NAP.

Screenshot associate SAP ISDN with NAP

6. Click 'Save' to store the changes.

Screenshot confirm new NAP associations

7. Verify that the newly created NAP is listed in the NAP list.

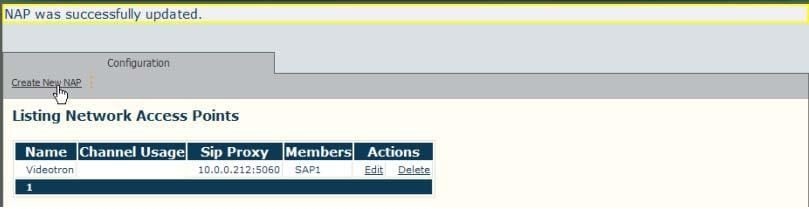

• Click 'Create New NAP' to add an additional NAP to the NAP list

Screenshot list of NAPs

8. Enter name for the new NAP.

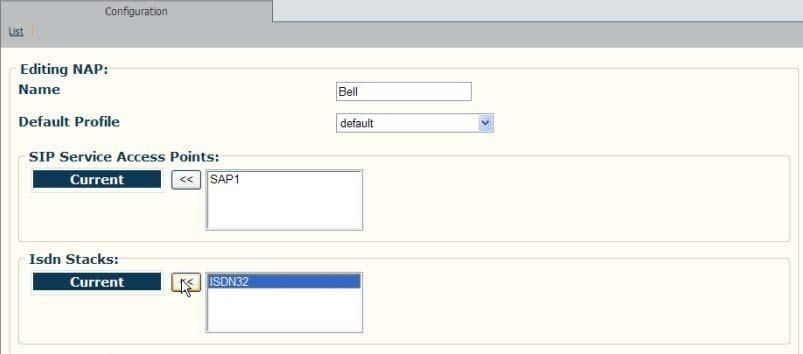

• Use the << button to associate either a SAP, ISDN stack, or ISUP interface with the NAP. In this example, an ISDN signaling stack is selected for a circuit-switched service.

Screenshot confirm new NAP again

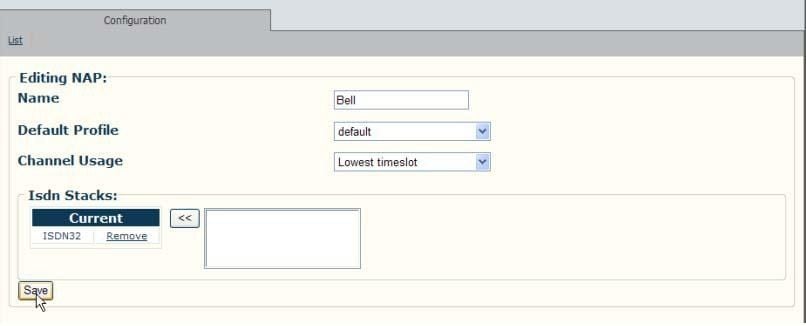

9. Click 'Save' to store the settings.

Screenshot confirm new NAP again again

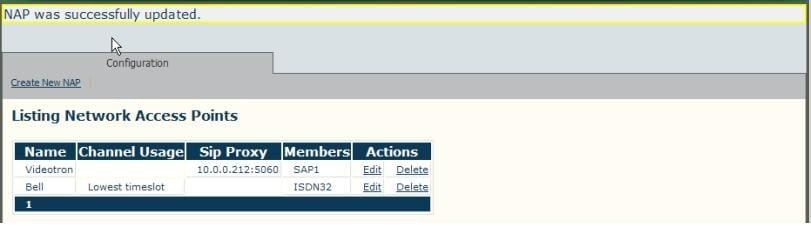

1. Verify that the newly created NAPs appear in the NAP listing

Screenshot new NAP successful again

Verifying Status

To verify the status of the NAP configuration, either select Status from the Navigation panel or select the Status tab in the Information panel.
