Creating a Clocking Source

1. Select Clocking from the navigation panel.

Menu verify clocking source

2. Click 'Create New System Clock Reference'.

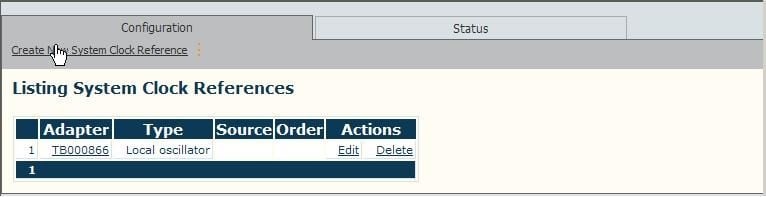

Screenshot creating newsystem clock reference

3. Select a hardware adapter.

• Select a Clock Reference Type and Source

• Click Create

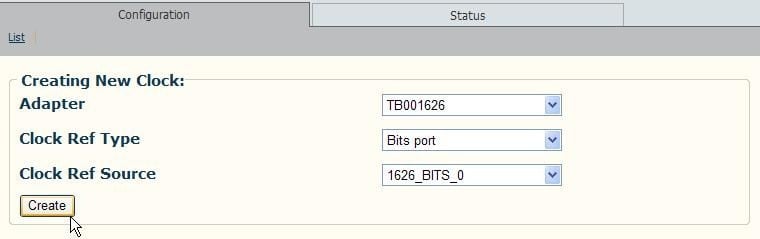

Screenshot clicking to create new system reference clock

4. Once a new clock reference has been created:

• Set its priority in relation to other clocking sources.

• A single lined arrow moves the clocking source either one step closer to the top of the list or the bottom.

• A double lined arrow moves the clocking source either completely to the top or the bottom of the clocking source list.

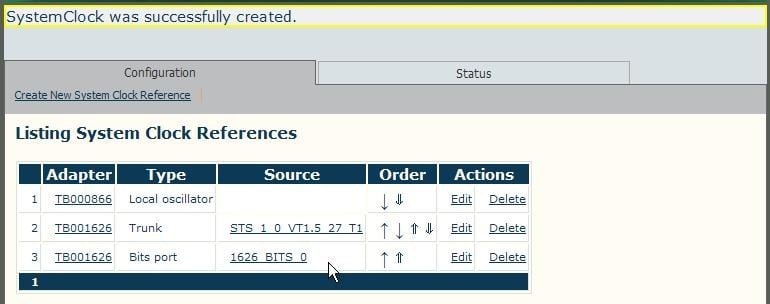

Screenshot new system reference clock successful

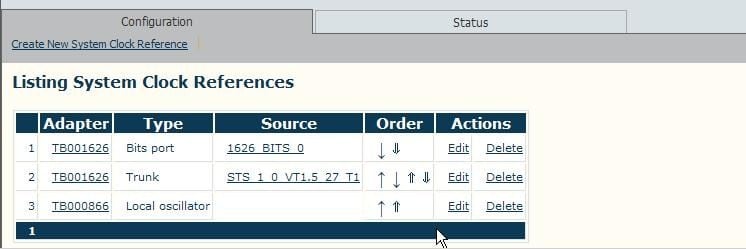

Screenshot listing system reference clocks

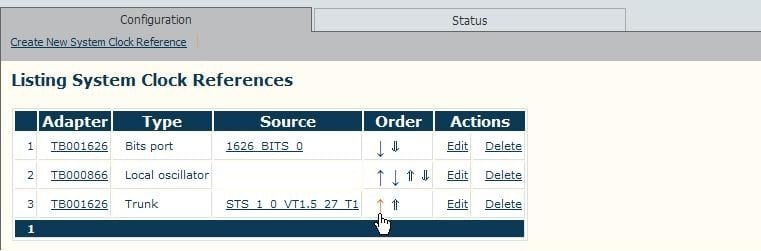

Screenshot showing how to reorder system reference clocks

Note: The clock source closest to the top is the highest priority and is selected as the first choice by the system manager as long as the clock source is a valid one.

Verifying Status

To verify the status of the system clocks, either select Status from the Navigation panel or select the Status tab in the Information panel.
