Configuring the ISDN Signaling Stack

Note: This procedure is repeated for as many line services require ISDN signaling. Furthermore, ISDN signaling is configured separately for each Tmedia or Tdev unit as needed. You should make certain that you have selected the Tmedia unit that you wish to configure with ISDN signaling.

To configure an ISDN stack

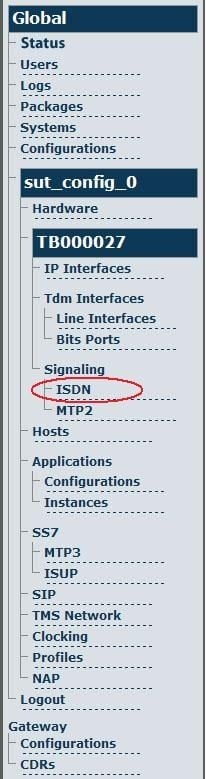

1. Select ISDN from the navigation panel.

Menu isdn signaling

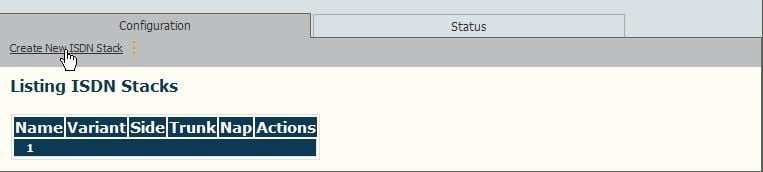

2. Click Create New ISDN Stack.

Screenshot showing how to create isdn signaling stack

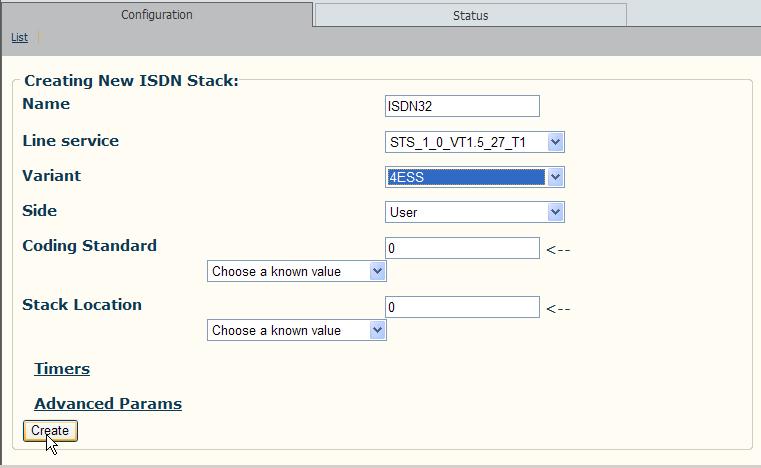

3. Enter a name for the ISDN stack.

• Select the line service requiring the ISDN signaling

• Select the variant

• Click Create, to save the changes

Screenshot configure new ISDN signaling stack

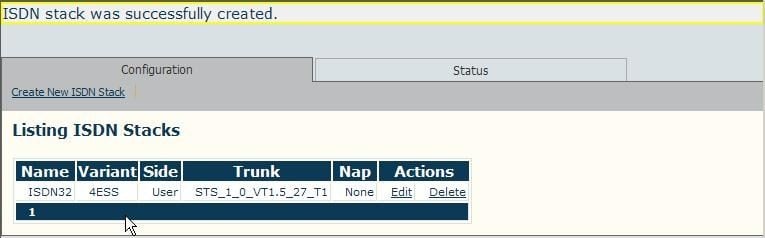

4. Verify that the message ISDN stack was successfully created is displayed.

Screenshot successfully created new ISDN signaling stack

Note: To use an ISDN signaling stack, it must be assigned to a Network Access Point (NAP).

Verifying Status

To verify the status of the ISDN stack, either select Status from the Navigation panel or select the Status tab in the Information panel.
