Configuring E1/T1/J1 Line Services

Line services correspond to the payload content of physical lines, therefore in order to configure a Line Service for a line interface, the line interfaces should already have been configured.

To create a line service

1. Select Line Interfaces from the navigation panel.

Menu line interfaces

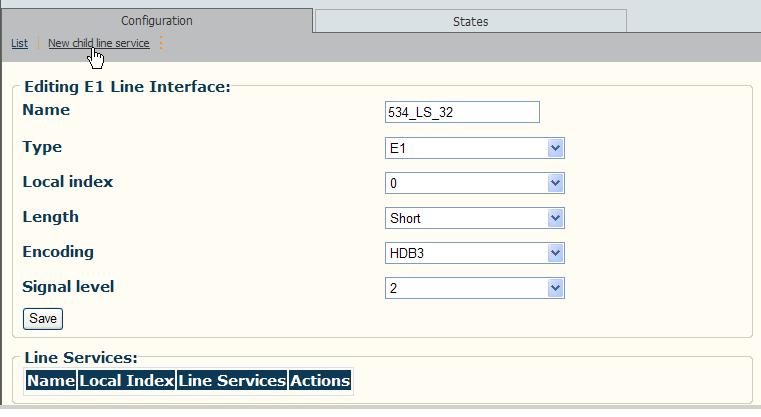

2. Click 'New Child Line Service' from the Line Interface Information panel.

Screenshot new child line interface

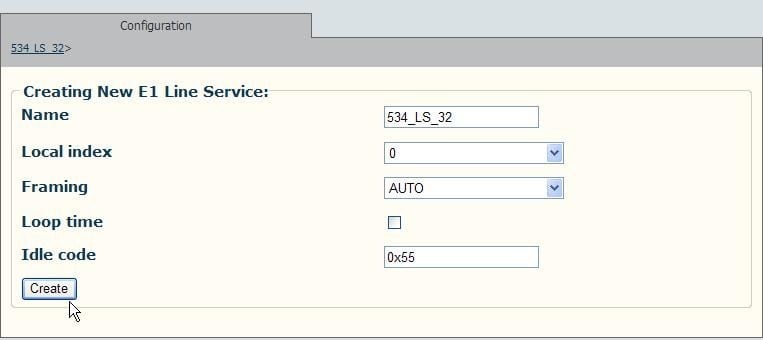

3. Enter a name for the line service and click 'Create'.

Screenshot creating new E1 line service

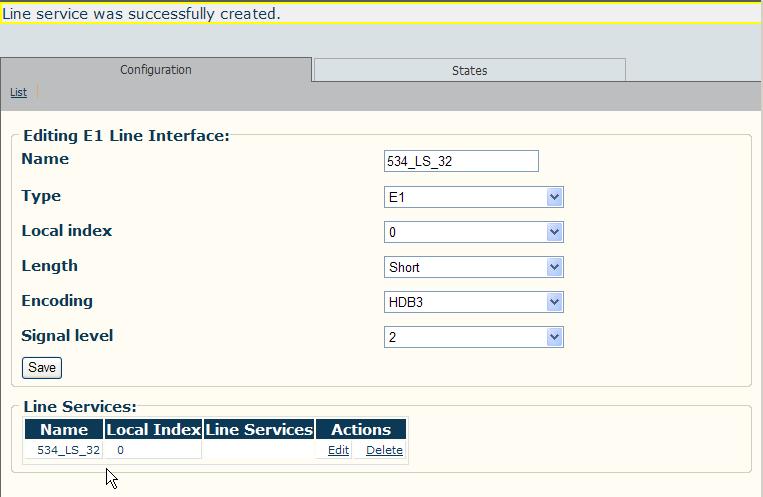

4. The resulting line service is displayed in the information panel.

Screenshot new line service sucessfully created

5. Repeat this procedure for each T1/E1/J1 line that you will use.

Verifying Status

To verify the status of a line service, either select Status from the Navigation panel or select the Status tab in the Information panel.
