Configuring DS3 Line Services

Note: To configure a line service, the line interfaces should already have been configured.

To create a DS3 line service

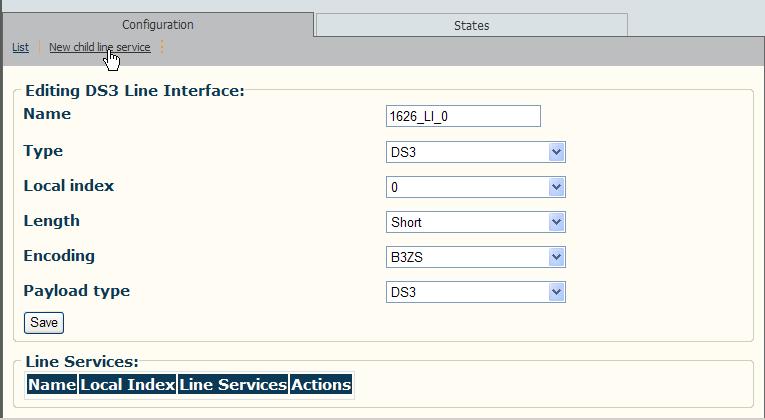

1. Click Create New Child Line Service from the Line Interface Information panel.

Screenshot new ds3 child line service

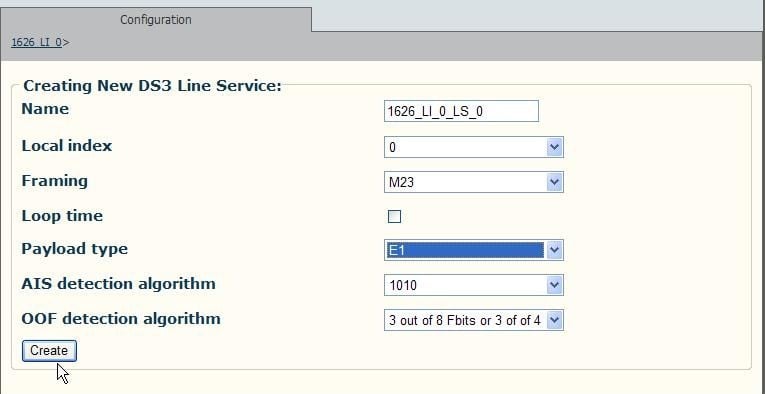

2. Enter a name for the line service, select a local index of 0, select payload type and click 'Create'.

Screenshot creating new DS3 child line service

In this example a payload type of E1 is selected. This means that this line service will carry an E1 payload over the DS3 line interface.

Note: Line services employing M23 framing will always have a local index of 0.

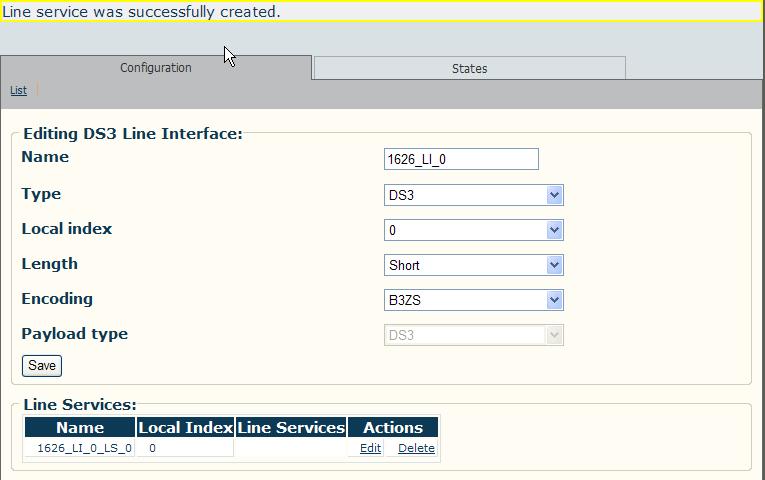

3. The resulting line service is displayed in the information panel.

• Repeat this procedure for each line service that will be used to carry payload on the first DS3 line interface.

Screenshot new ds3 child service successfully created

Note: The previous procedure for the DS3 TDM module must be carried out for each DS3 line interface, referred to as local indexes 0-2, and for each required line service carrying payload inside these DS3 line interfaces.

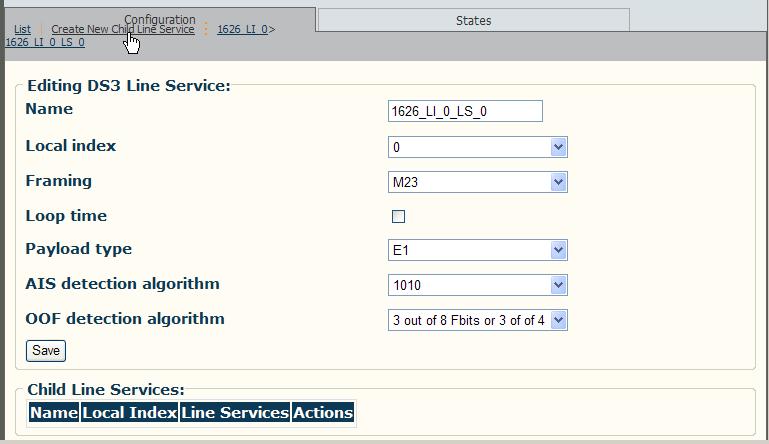

4. Click Create New Child Line Service to create a child line service for the DS3 line service.

• Enter a local index from 0-27 for T1/J1 lines and 0-20 for E1 lines.

Screenshot new DS3 child line service continued

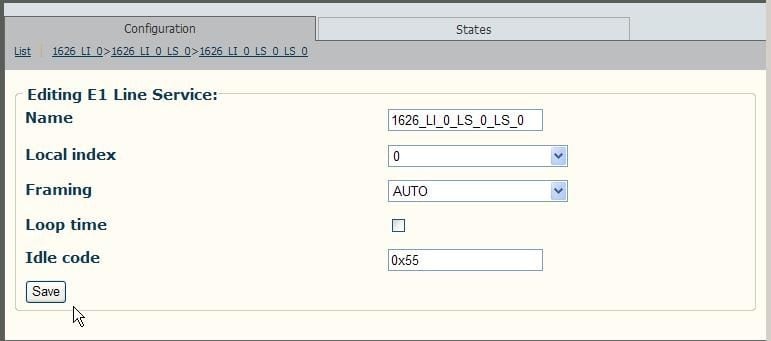

5. Click Save to save the changes.

Screenshot new DS3 child line service continued saving

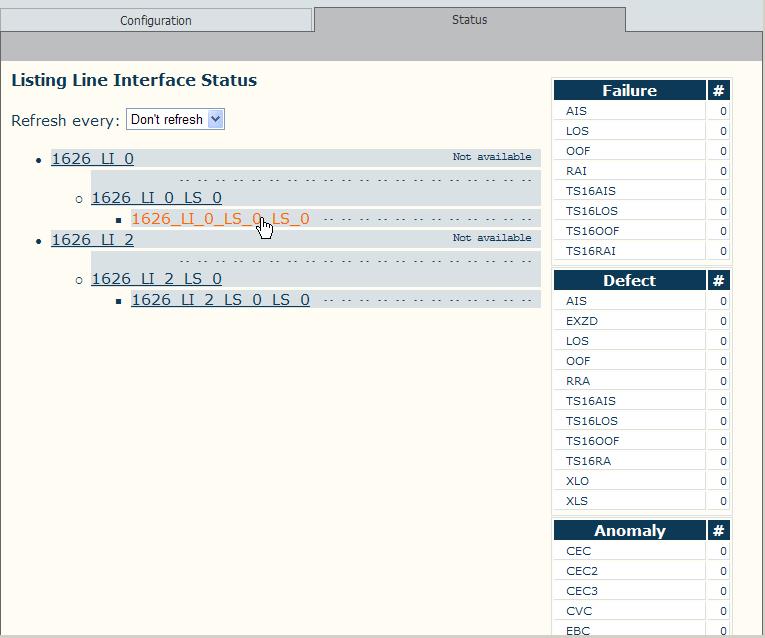

6. Click the Status tab, to view the line statuses.

Screenshot listing status of line interfaces

Note: Selection of a child line service in the Line Interface Status window causes the status values to change reflecting the line service’s current state.

Verifying Status

To verify the status of a line interface, either select Status from the Navigation panel or select the Status tab in the Information panel.
