Configuring DNS Parameters

Note: In order for the DNS server traffic to route to the DNS server, the IP port and transport server must be set.

To configure the DNS parameters

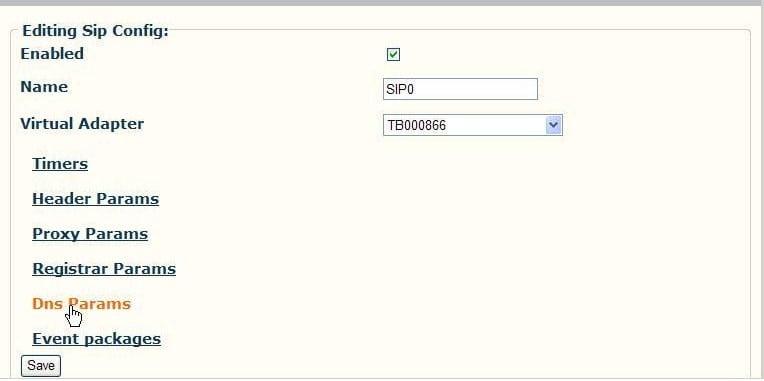

1. Click DNS Params in the SIP configuration window.

Screenshot DNS parameters

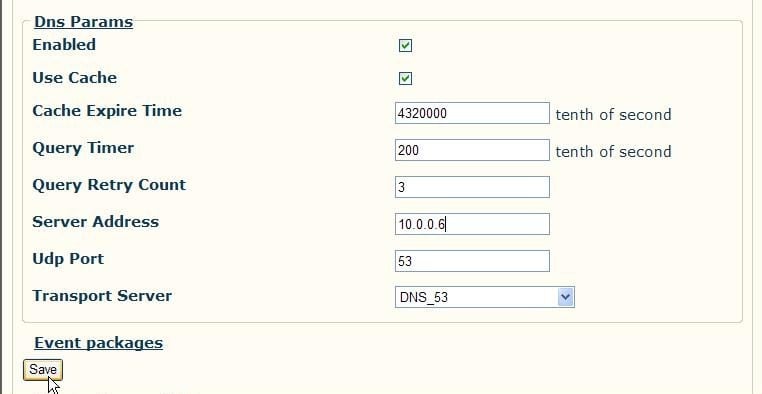

2. Enter the IP address of the DNS.

• Select the transport server

• Click Save to store your settings

Screenshot modifying DNS parameters

• Verify that the 'SipCfg was successfully updated' message is displayed.

Screenshot SIP configuration updated success
