Activating the Configuration

Changes made to the configuration of the Tmedia or Tdev units are stored on the OAM&P Configuration and Logging database. In order for changes to be used by the system, they must first be activated. This is done at the system level and accessed from the Navigation panel.

Note: To activate a configuration, you must be the Root user or have a user access level of 1.

To activate a system configuration

1. Select Systems from the navigation panel.

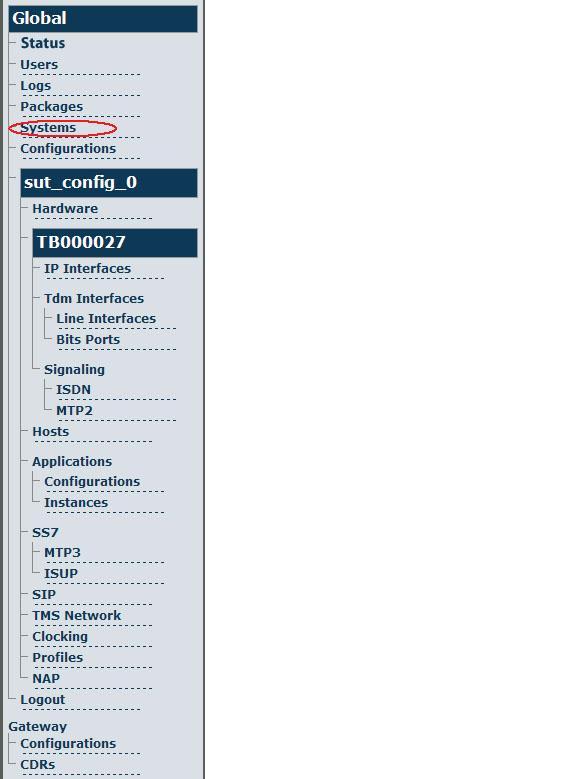

Menu systems

2. Click Edit to access the System Configuration screen.

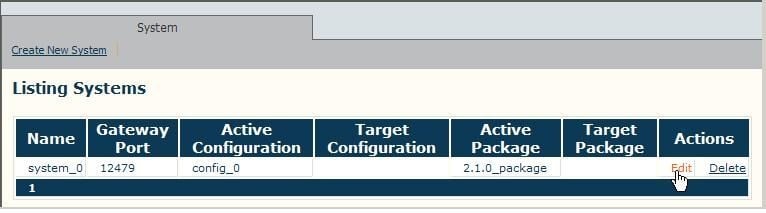

Screenshot editing system configurations

3. Select the name of the system configuration that you wish to activate.

• Click Activate

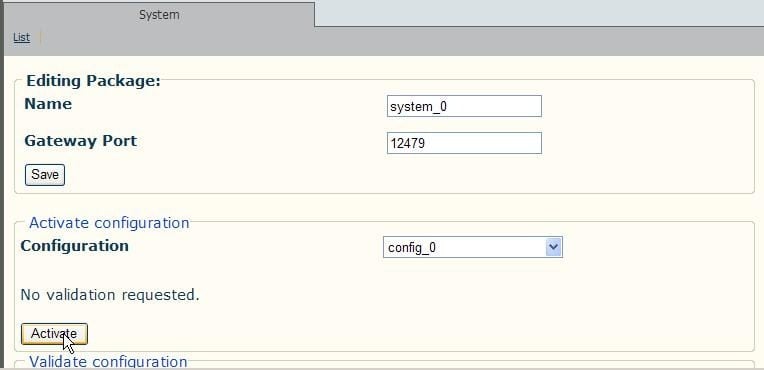

Screenshot system configuration activation

A confirmation screen is displayed indicating the outcome of a successful activation.

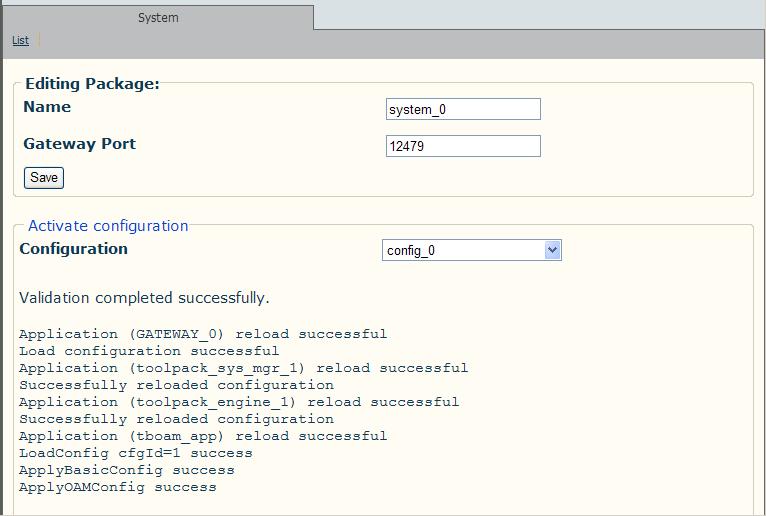

Screenshot system configuration confirmation
