Toolpack Create New Routing Script

Applies to: Tmedia 3.0, 3.2, 3.3; SBC 3.1, 3.3

1- Click Routing Script in the navigation panel

CreateRoutingScript 0

2- Configure the new Routing Script:

• Enter a name for the routing script

• Make sure the box labeled Create default script files is checked

• Click Create

CreateRoutingScript 1

3- Verify that the Script was successfully updated message appears.

CreateRoutingScript 2

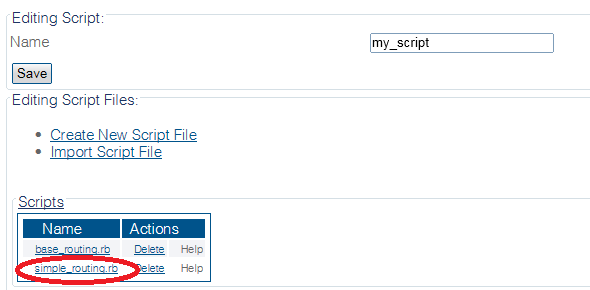

4- Disable simple routing:

• Select Simple Routing.

CreateRoutingScript 3

5- Uncheck Load on startup

• Click Save

CreateRoutingScript 4

Northbound Interface

Path

/configurations/@[configuration_name]/routing_scripts/@[routing_script]

Parameters (text)

/configurations/@[configuration_name]/routing_scripts/@[routing_script]
name = "@[routing_script]"

Parameters (json)

{
  "name" : "@[routing_script]",
}
