Toolpack Configuring IP Interfaces

Applies to: SBC 3.1, 3.3

The IP interface of the LAN/WAN ports can be configured by setting the following:

• IP Address

• Netmask

• Gateway

To configure a LAN/WAN IP interface

1. Select IP Interfaces from the navigation panel:

Create IP Interface Tsbc 0

1. Click the IP Interfaces tab.

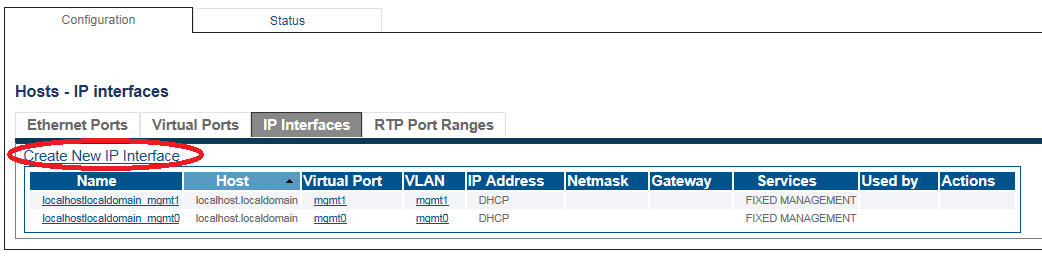

• Click Create New IP Interface

Create IP Interface Tsbc 1

1. Configure the IP interface:

• Enter a name for the interface

• Select 1 or more services to use for the IP interface (RTP, SIP and H.248/RADIUS can be selected simultaneously).

• Select the Host VLAN from which IP packets will exit.

• Indicate whether or not to use DHCP to automatically get an IP address for this port. (selecting this option removes the need to enter and IP address, Netmask, and Gateway)

• Enter an IP address

• Enter a Netmask

• Enter a gateway address

• Click Save

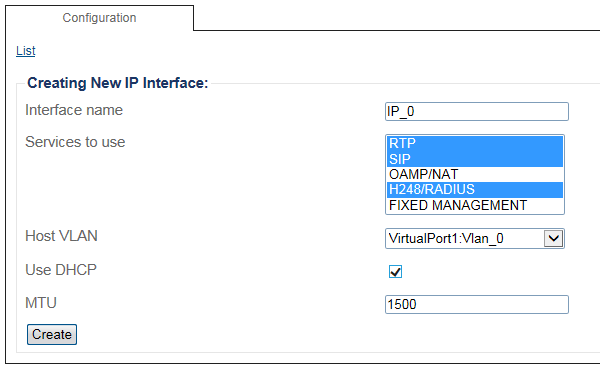

Create IP Interface Tsbc 2a

OR

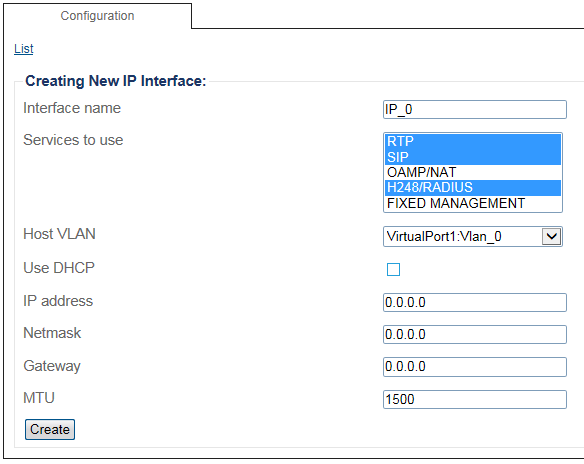

Create IP Interface Tsbc 2b

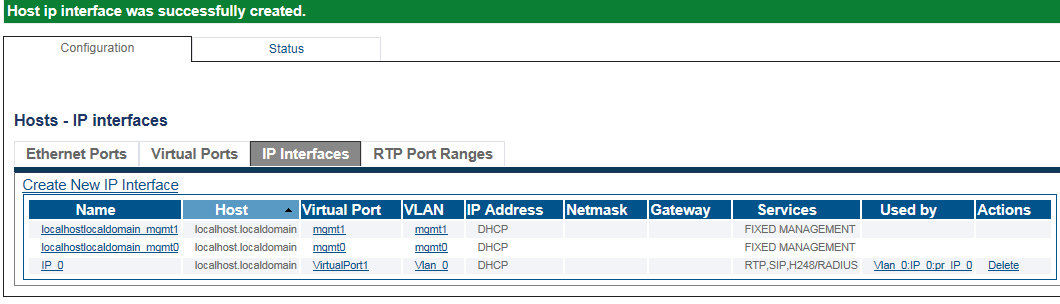

1. The changes are displayed in the IP interfaces information panel:

Create IP Interface Tsbc 3

1. Activate the configuration

• Select System from the navigation panel.

• Click Activate

List of Parameters

• Interface name

• Services to use

• Host VLAN

• Use DHCP

• IP Address

• Netmask

• Gateway
