Create a NAT Traversal

Applies to: SBC 3.1, 3.3

One or more NAT traversals can be configured to manage the IP connections traversing network address translation (NAT) gateways.

To configure a NAT traversal

1. Select NATs from the navigation panel.

CreateNatTraversal Tsbc 0

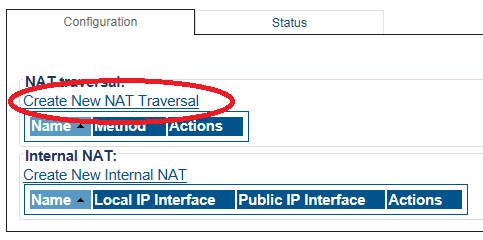

1. Click Create New NAT Traversal

CreateNatTraversal 1

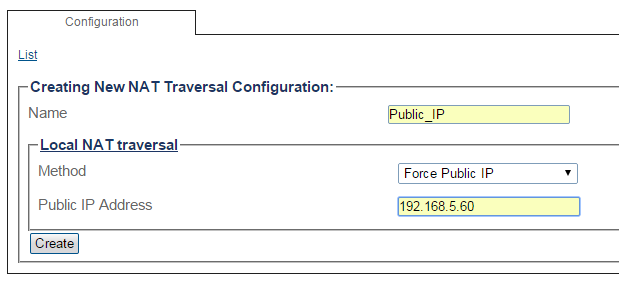

1. Configure the following fields:

• Enter a name for the NAT Traversal.

• Set the local Nat traversal method to Force public IP.

• Enter the public IP address of the unit.

• Click Create

CreateNatTraversal 2

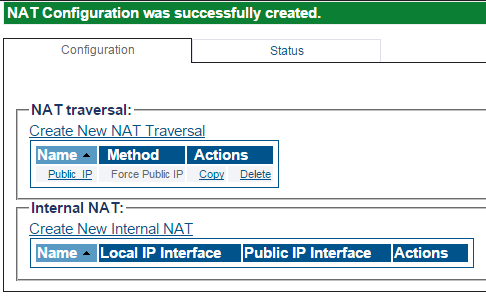

1. Verify that the NAT Configuration was successfully created message is displayed

CreateNatTraversal 3

List of Parameters

• Name

• Method

• Public Interface
