Configuring a VLAN

Applies to: SBC 3.1, 3.3

After you create a virtual port, you must create a new VLAN.

To configure a VLAN

1. Select IP Interfaces from the navigation panel

Create Vlan Interface Tsbc 0

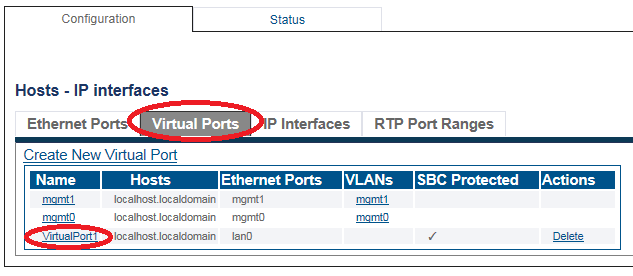

1. Click the Virtual Ports tab.

• Select a Virtual Port

Create Vlan Interface Tsbc 1

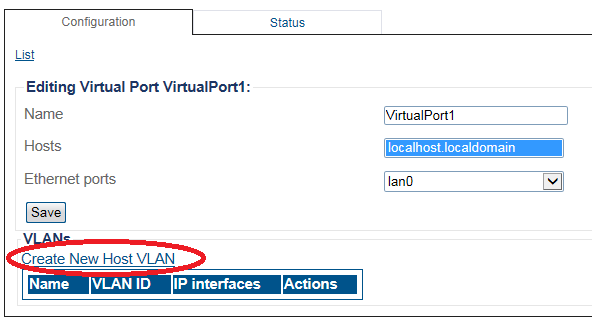

1. Create a VLAN that uses this virtual port

• Click Create new Host VLAN

Create Vlan Interface Tsbc 2

1. Configure the new VLAN

Important Note

Vlans can be configured on the SBC in these cases:

• Baremetal installation

• VMware installation with Passthrough or SR-IOV network interfaces

• VMware installation with a network interface using vlan ID 4095

Vlans should not be configured on the SBC in this case:

• VMware installation with network interfaces using vlans from 1 to 4094 In this case, all interfaces on the SBC should be configured as untagged. Vlans are configured in the VMware port Groups.

Please check here: How to add VMware Network Interfaces

If VLANs must be configured, follow these steps:

• Enter a name for the VLAN

• If the port is to be used untagged, make sure Untagged is checked.

• If the port is to be used with a 802.1Q tag, uncheck Untagged and enter a VLAN ID.

• Click Create

Create Vlan Interface Tsbc 3

OR

Create Vlan Interface Tsbc 4

List of Parameters

• Name

• Untagged

• VLAN id

• Allow ICMP

• Allow IP fragmentation
