Toolpack Creating a Line Service
Applies to: Tmedia 3.0, 3.2, 3.3
A line service defines the type of paylaod that a line interface carries or it defines another line service. The configuration of a line service ends when it reaches the E1/J1/T1 line service.
The E1/T1 line services are also known as trunks or spans.
To create line service(s):
1- Select TDM Line Interfaces from the navigation panel

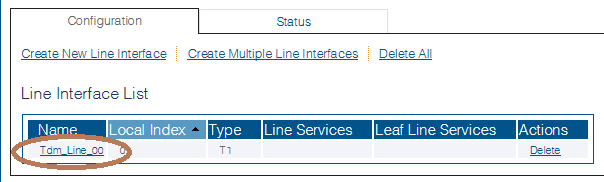

2- Select the line interface for which you would like to create a line service.
3- You can create one line service at a time or multiple line services in a single pass.

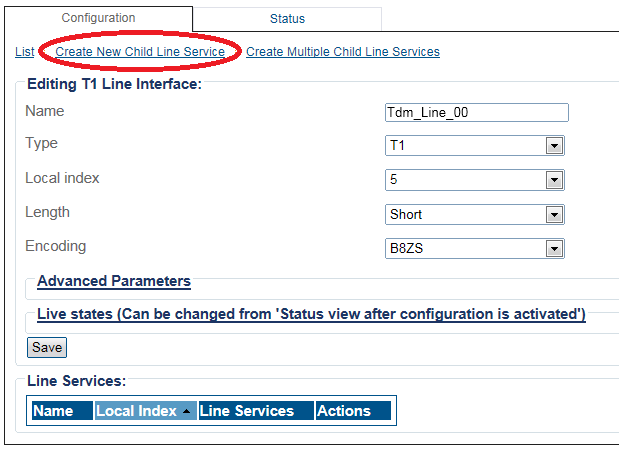

3a- To create a single line service, click Create New Child Line Service.
3b- To create a range of line services in a single pass, click Create Multiple Child Line Services.
4- Enter values for the line service.

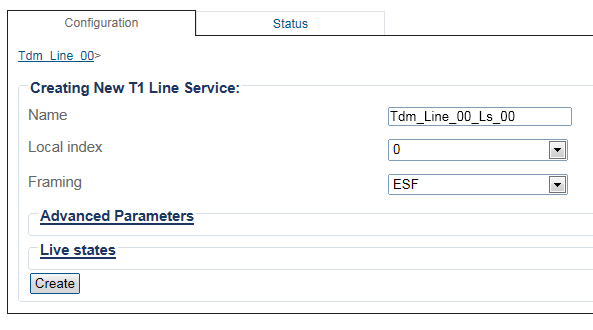

4a- Single line service:
Enter a name for the new line service
Select an available local index.
Select a framing mode.
Click Create.

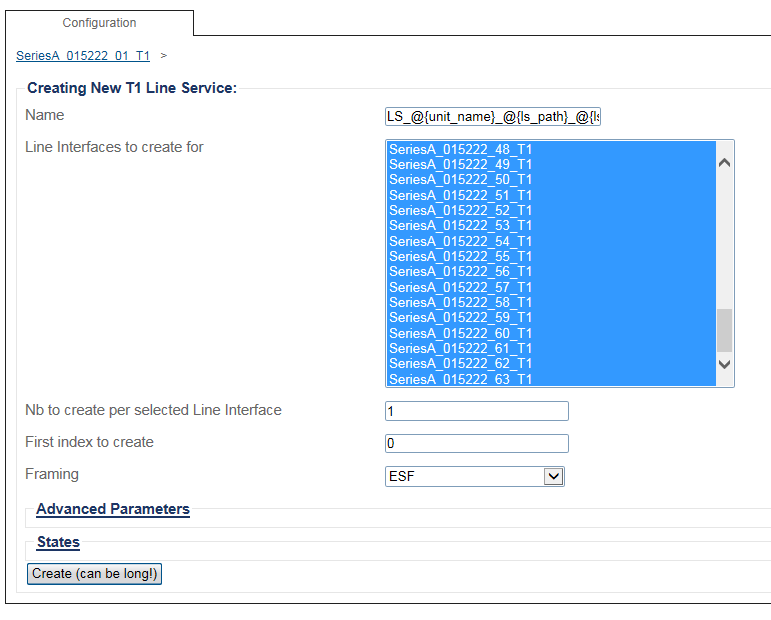

4b- Multiple Line Services
Enter a name for the range of line services.
Select a renge of line interfaces for which the line services will be created. (Use the CTRL key to select individual line intefraces or the shift key to select a range.)
Enter the number of line services you will create for the line interface. Enter 1 for T1/E1.
Enter the starting index in first index to create.
Select a framing mode.
Click Create.

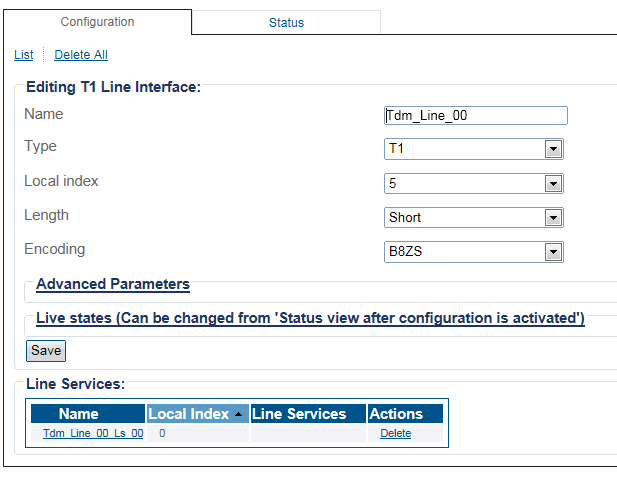

5- The new line service(s) are displayed in the Line Services list
