Creating a Line Interface
Applies to: Tmedia 3.0, 3.2, 3.3
Line interface is a generic term for TDM physical interfaces. TelcoBridges products support 3 types of physical interfaces:
To create line interface(s):
1- Select TDM Line Interfaces from the navigation panel
2- You can create one line interface at a time or multiple line interfaces in a single pass.

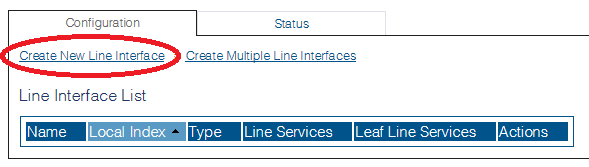

2a- To create a single line interface, click Create New Line Interface.
2b- To create a range of line interfaces, click Create Multiple Line Interfaces.
3- Enter values for the line interface.

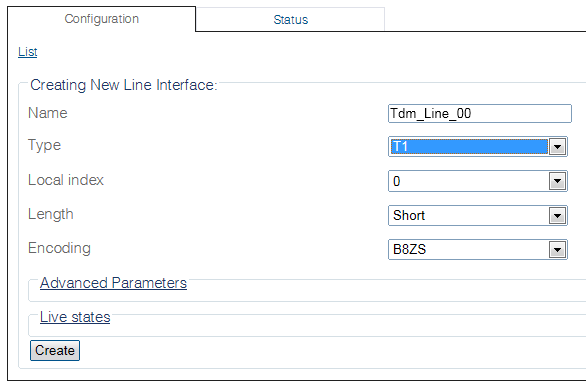

3a- Single line interface
Enter a name for the interface
Set a type for the interface
Set a local index for the line
Select a length and an encoding scheme
Click Create

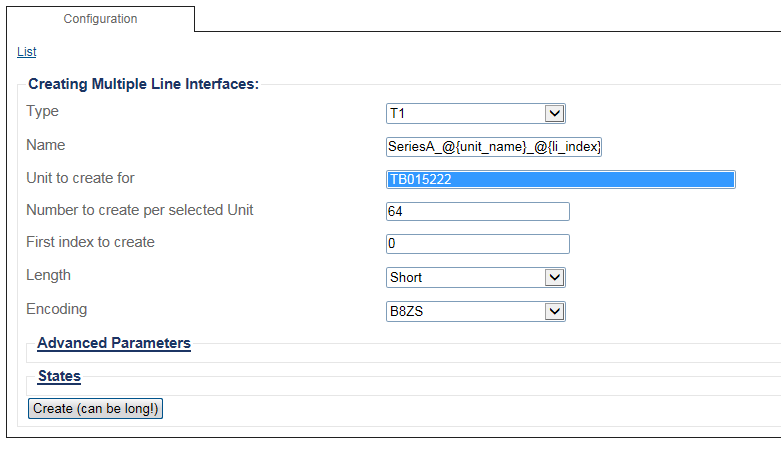

3b-Multiple line interfaces
Set a type for the interface
Enter a name for the range of interfaces. (In this example 'SeriesA' is prefixed to the name)
Enter the number of line interfaces you wish to create.
Set an index for the first line.
Select a length and an encoding scheme
Click Create
4- Verify that the "Line interface was successfully created" message is displayed
