Creating a DS3 Line Service

Applies to: Tmedia 3.0, 3.2, 3.3

A line service defines the type of payload that a line interface carries or it defines another line service. The configuration of a line service ends when it reaches the E1/J1/T1 line service.

The E1/T1 line services are also known as trunks or spans.

To create line service(s):

1- Select TDM Line Interfaces from the navigation panel

CreateLineService 0

2- Select the line interface for which you would like to create a line service.

CreateLineService 1

3- To create a single line service, click Create New Child Line Service.

CreateLineService 1a

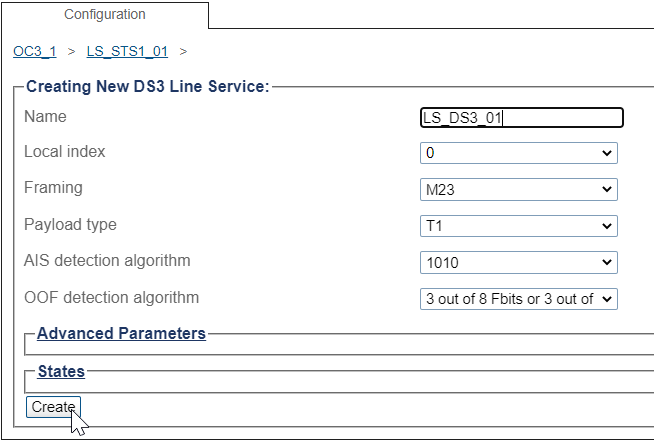

4- Enter values for the line service.

  • Enter a name for the new line service

  • Select an available local index. There is 1 DS3 per STS1 (or 28 VT1.5 per STS-1)

  • Select the Framing: DS3 = M23

  • Select a Payload Type: T1

  • Click Create.

Create DS3 line service 2

5- The new line service(s) are displayed in the Line Services list

Create DS3 line service 3

Path

Parameters (text)

Parameters (json)

List of Parameters

Advanced Parameters
