Create an Internal NAT

Applies to: Tmedia 3.0, 3.2, 3.3; SBC 3.1, 3.3

One or more internal NATs can be configured to manage internal IP connections.

To configure an Internal NAT

1. Select NATs from the navigation panel.

CreateNatTraversal 0

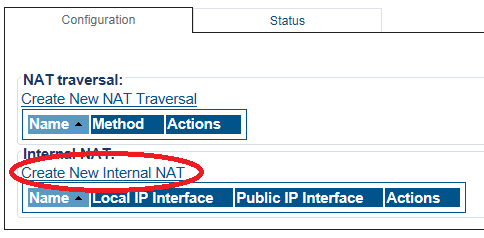

1. Click Create New Internal NAT.

CreateInternalNat 0

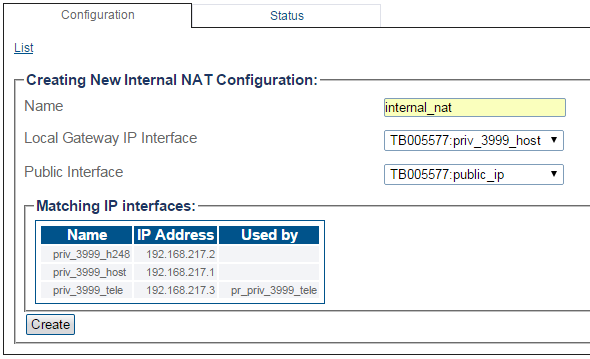

1. Configure the following fields:

• Enter a name for the internal NAT.

• Select the Gateway IP Address of your internal NAT from Local Gateway IP Interface.

• Select the public IP from Public Interface.

• Click Create

CreateInternalNat 1

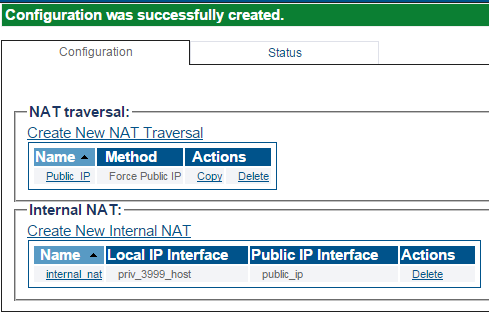

1. Verify that the Configuration was successfully created message is displayed

CreateInternalNat 2

Path

/configurations/@[configuration_name]/internal_nats/@[internalNat_name]

Parameters (text)

/configurations/@[configuration_name]/internal_nats/@[internalNat_name]
local_ip_interface  = "@[hardware_name].@[vlan]"
name                = "@[internalNat_name]"
public_ip_interface = "@[hardware_name].@[vlan]"

Parameters (json)

{
  "local_ip_interface" : "@[hardware_name].@[vlan]",
  "name" : "@[internalNat_name]",
  "public_ip_interface" : "@[hardware_name].@[vlan]"
}

List of Parameters

• Name

• Local Gateway IP Interface

• Public Interface
