Create a DS3 Configuration

Applies to: Tmedia 3.0, 3.2, 3.3

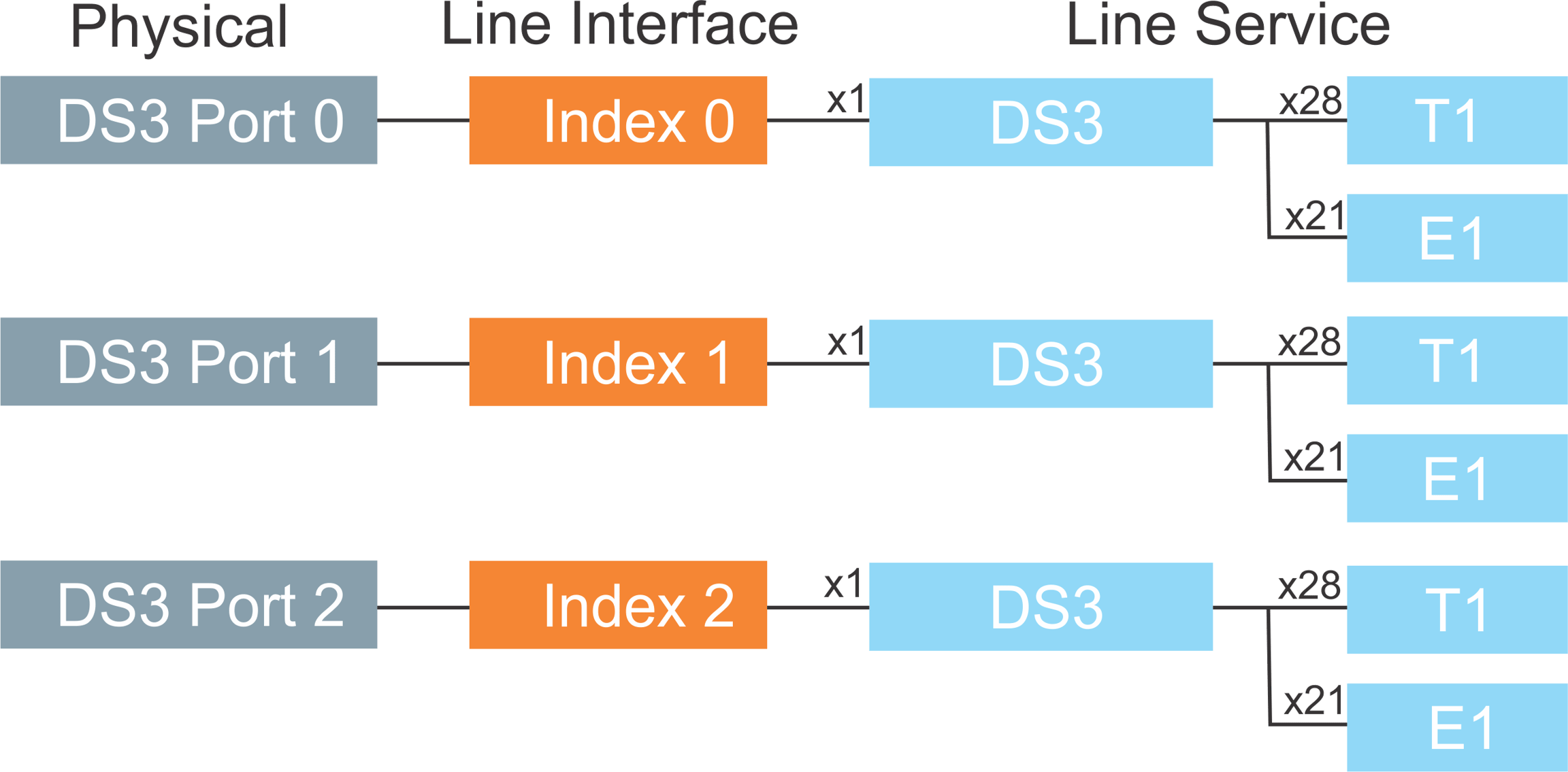

Create a DS3 line interface for as many as 3 physical DS3 lines. To each DS3 line interface assign it an index number from 0 to 2. Once this is done, assign a DS3 line service to each DS3 line interface. Finally, to the DS3 line service, either create up to 28 T1 line services or 21 E1 line services.

DS3 LI LS UseCase

(Step 1) Create DS3 Line Interface(s)	(Step 2) Create DS3 Line Service(s)	(Step 3) Create T1 or E1 Line Service(s)
*Create DS3 Line Interfaces ** Type = DS3	*Create DS3 Line Services ** Type = DS3 ** T1 or E1 payload ** Framing (M23, CBIT) ** AIS detection algorithm ** OOF detection algorithm	*Create T1 Line Services ** Type = T1 or *Create E1 Line Services ** Type = E1
