Configuring an IP tunnel

Applies to: Tmedia 3.0, 3.2, 3.3

One or more IP tunnels can be defined to manage the IP traffic betweeen two networks.

To configure an IP tunnel (PPPoE)

Select IP Interfaces from the navigation panel:

Click the Tunnels tab:

Click Create New Tunnel

Configure the range of ports:

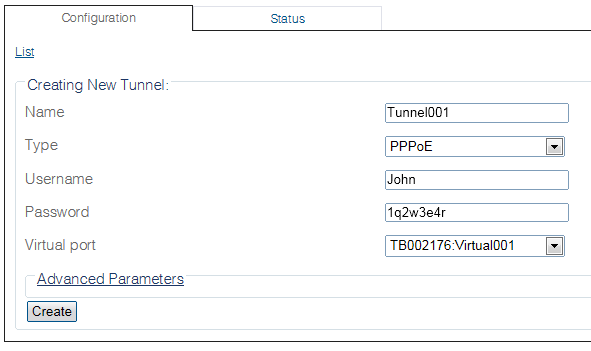

Enter a name for the IP tunnel
Select a protocol for the IP tunnel
Provide a user name and password
Select a virtual port
Click Create

Verify that the Tunnel was successfully created message is displayed.

Path

/configurations/@[configuration_name]/hardware_units/@[hardware_name]/tunnels/@[tunnel_name]

Parameters (text)

/configurations/@[configuration_name]/hardware_units/@[hardware_name]/tunnels/@[tunnel_name]
name                = "@[tunnel_name]"
password            = "@[password]"
type                = "PPPoE"
unique_name         = ".31"
username            = "@[user_name]"
virtual_port        = ""

/configurations/@[configuration_name]/hardware_units/@[hardware_name]/tunnels/@[tunnel_name]/advanced_parameters
lcp_interval              = "4 seconds"
lcp_max_failure           = 5
mss_clamping              = 1452
mtu                       = 1492
overwrite_default_gateway = false

Parameters (json)

{
  "advanced_parameters" : {
    "lcp_interval" : "4 seconds",
    "lcp_max_failure" : 5,
    "mss_clamping" : 1452,
    "mtu" : 1492,
    "overwrite_default_gateway" : false
  },
  "name" : "@[tunnel_name]",
  "password" : "@[password]",
  "type" : "PPPoE",
  "unique_name" : ".31",
  "username" : "@[user_name]",
  "virtual_port" : ""
}

List of Parameters

Advanced Parameters

PreviousConfiguring an IP Port Range

NextCreate a DS3 Configuration
