Configuring an IP Port Range

How to configure an RTP port range on a Tmedia system from the Toolpack web portal's IP Interfaces page. Applies to Tmedia 3.0, 3.2 and 3.3.

Applies to: Tmedia 3.0, 3.2, 3.3

A range of IP ports can be configured.

To configure an RTP port range

1. Select IP Interfaces from the navigation panel:

Create Voip Interface 0

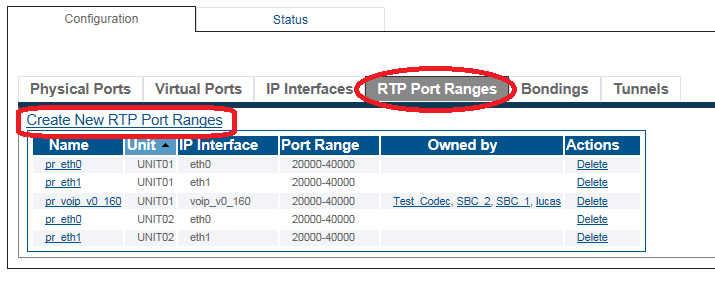

1. Click the RTP Port Ranges tab:

• Click Create New RTP Port Ranges

CreateIP PortRange 0

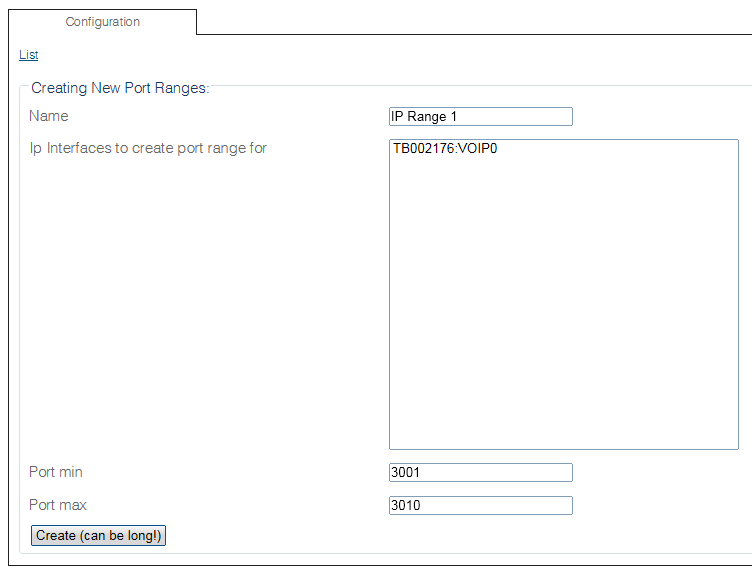

1. Configure the range of ports:

• Enter a name for the port range

• Select one or more IP interfaces

• Enter a minimum port number for the port range

• Enter a maximum port number for the port range

• Click Create

CreateIP PortRange 1

Path

/configurations/@[configuration_name]/hardware_units/@[hardware_name]/rtp_port_ranges/Default

Parameters (text)

/configurations/@[configuration_name]/hardware_units/@[hardware_name]/rtp_port_ranges/@[port_name]
ip_interface = "@[hardware_name]"."@[port_name]"
name         = "Default"
port_max     = 60000
port_min     = 10000
unique_name  = "@[name]"

Parameters (json)

{
  "ip_interface" : "@[hardware_name]"."@[port_name]",
  "name" : "Default",
  "port_max" : 60000,
  "port_min" : 10000,
  "unique_name" : "@[name]"
}

List of Parameters

• Name

• RTP Port min

• RTP Port max
