Configuring a Virtual Port
Applies to version(s): v2.9.
One or more virtual ports can be created to manage IP traffic.
To configure a virtual port
Select IP Interfaces from the navigation panel

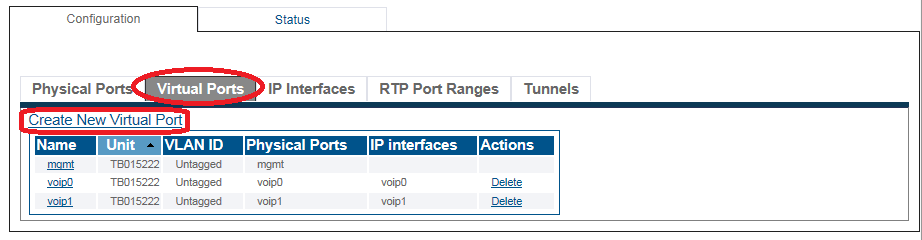

Click the Virtual Ports tab.
Click Create New Virtual Port

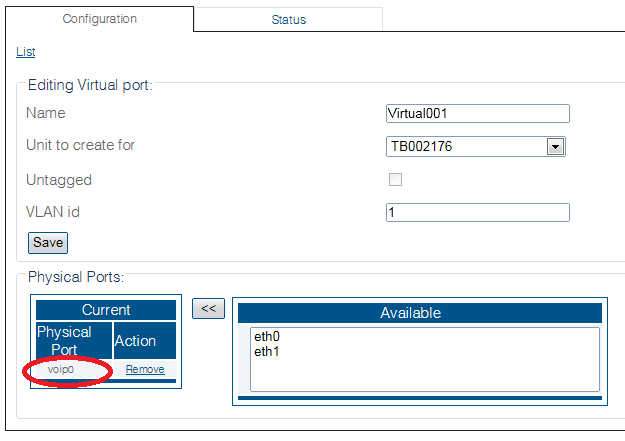

Configure the virtual port.
Enter a name for the virtual port
Select the hardware device to which the virtual port is assinged
Enter a VLAN ID
Click Create

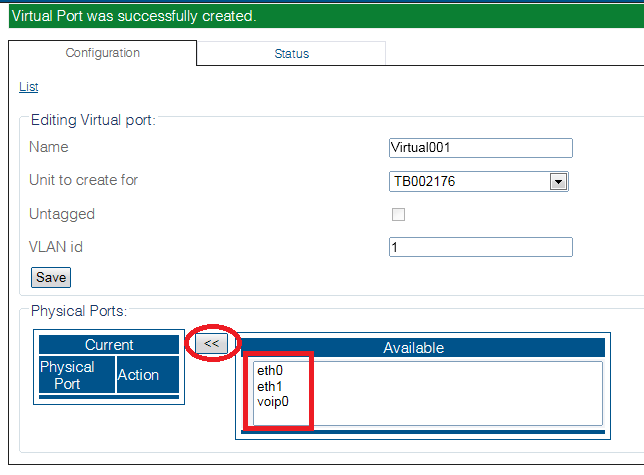

From the Available ports window, select a physical port to which the virtual port is assigned. Note that this window is scrollable.
The selected port is displayed in the current physical ports window.
