Modifying SDP Profile Settings

Applies to: Tmedia 2.10, 3.0, 3.2; SBC 3.0, 3.1

To configure SDP settings, do the following:

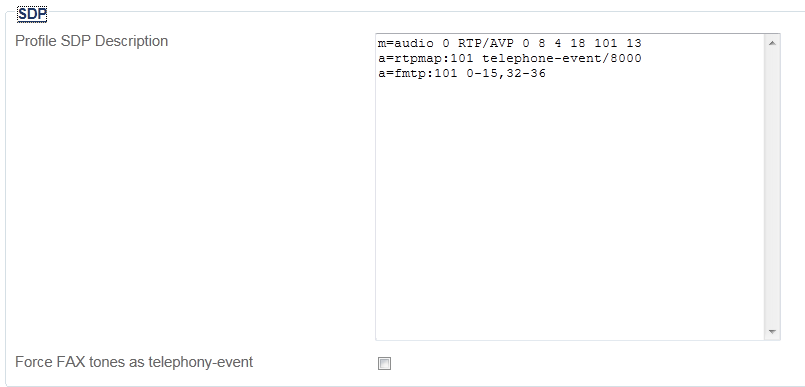

1- Click SDP in the Editing Profile window, to display the customizable options.

ProfileVoipSdp A 0

2- Modify settings as required.

ProfileVoipSdp 1

• Click Save

Path

/configurations/@[configuration_name]/profiles/@[profile_name]

Parameters (text)

/configurations/@[configuration_name]/profiles/@[profile_name]
name                            = "@[profile_name]"

/configurations/@[configuration_name]/profiles/@[profile_name]/voip/sdp
force_fax_tones_as_telephony_event = false
profile_sdp_description            = "m=audio 0 RTP/AVP 0 8 4 18 101 13\r\na=rtpmap:101 telephone-event/8000\r\na=fmtp:101 0-15,32-36"

Parameters (json)

{
 "voip" : {
    "sdp" : {
      "force_fax_tones_as_telephony_event" : false,
      "profile_sdp_description" : "m=audio 0 RTP/AVP 0 8 4 18 101 13\r\na=rtpmap:101 telephone-event/8000\r\na=fmtp:101 0-15,32-36"
    }
  }
}

List of Parameters

• Profile SDP Description

• Force FAX tones as telephony-event
