Accessing Codec and Tone Detection Profiles and Validating Settings

Applies to version(s): v2.8.

You must access your system's default sound codec and tone detection profiles, to validate whether or not they are correctly set.

To do so:

1- Click Profiles in the navigation panel

SipProfile 0

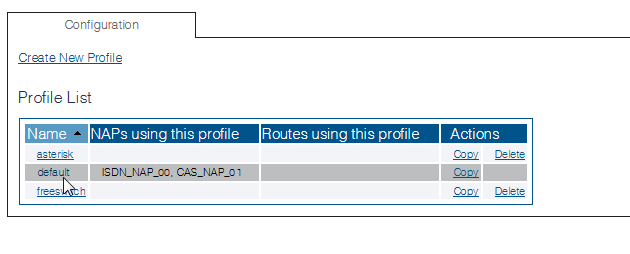

2- Select the default configuration (or the custom configuration you will be using)

SipProfile 1

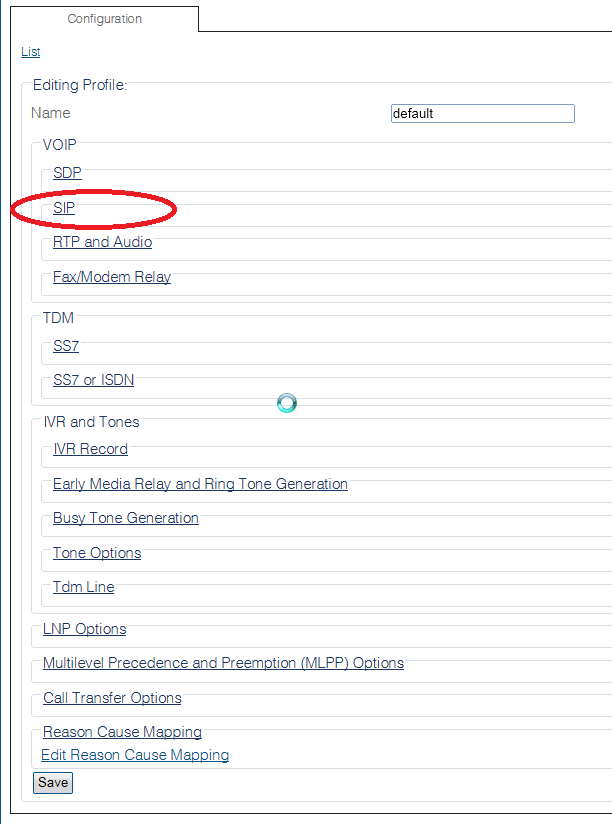

3- Click SIP to access the SIP profiles.

SipProfile 2

4- Validate the configuration:

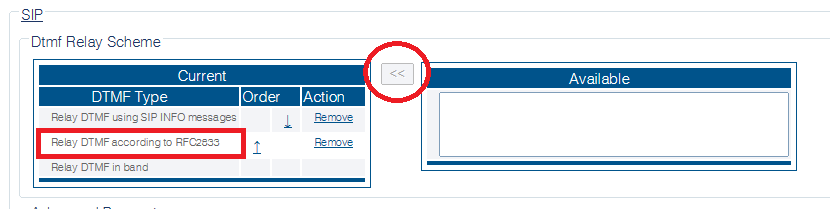

• Select an appropriate DTMF relay scheme from the list

SipProfile 3

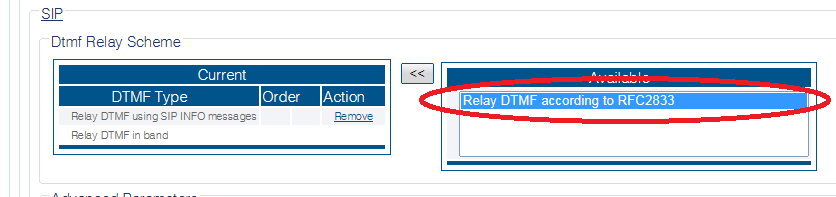

4- Click "<<" to add a scheme

• Click Save

SipProfile 4

IMPORTANT! The configuration will not be saved if the text box designed to contain the session definition protocol (SDP) is left empty. The SDP must be written as directed in the session description protocol page.
