Toolpack: Enabling and Configuring RADIUS

Applies to: Tmedia 3.0, 3.2, 3.3

This article describes how to enable and configure a TMG system to capture Call Detail Records (CDRs), using a RADIUS server.

Enabling RADIUS

1- Select Gateway from the navigation panel.

EnableCdr 0

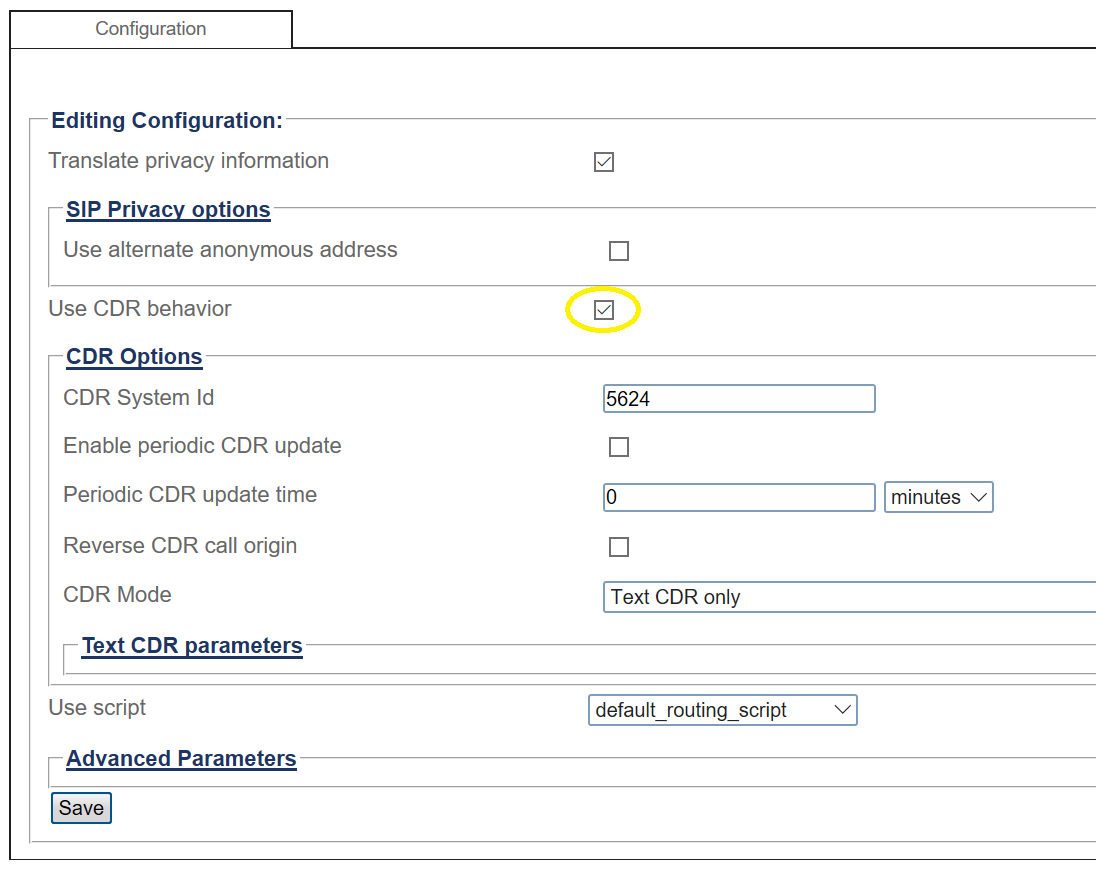

2- Verify that the box Use CDR behavior is checked.

700 px

3- Configure the CDR behavior in the CDR Options section:

• Enable periodic CDR update will add one entry in the CDR per Periodic CDR update time, in minutes.

• Select one of the RADIUS CDR mode from the CDR Mode :

  • Text CDR only: Will store the CDRs in a flat file. See Text CDR

  • RADIUS CDR only: Will send the CDR to an external RADIUS Server. See Radius CDR

  • Text and RADIUS CDR: Will store the CDRs in a flat file and send the CDR to an external RADIUS Server.

  • RADIUS CDR with Text CDR Fallback: Will send the CDR to an external RADIUS Server and if the RADIUS server cannot handle the load of CDRs, they will be stored in a flat file.

• Click Save to save your changes.

4- Verify that the Gateway configuration was successfully updated. message appears.

EnableCdr 3

Path

/configurations/@[configuration_name]/gateways/@[gateway_name]

Parameters (text)

/configurations/@[configuration_name]/gateways/@[gateway_name]
cdr_system_id                 = 5448
routing_script                = "default_routing_script"
translate_privacy_information = false
use_cdr_behavior              = true

/configurations/@[configuration_name]/gateways/@[gateway_name]/advanced_parameters
enable_call_recording            = false
forward_connected_number         = false
forward_redirecting_number       = true
forward_redirection_number       = true
forward_ss7_raw_message_bytes    = true
forward_user_to_user_information = true
route_retry_mode                 = "Call Alerted"
route_retry_relay_progress_msgs  = true
route_retry_timeout              = "10 seconds"

/configurations/@[configuration_name]/gateways/@[gateway_name]/advanced_parameters/call_recording_options
called                                = ""
calling                               = ""
incoming_nap                          = "(Any)"
outgoing_nap                          = "(Any)"
record_all_legs_of_a_call_to_one_file = false
termination_name                      = ""

/configurations/@[configuration_name]/gateways/@[gateway_name]/cdr_options
cdr_mode                   = "RADIUS CDR only"
enable_periodic_cdr_update = false
periodic_cdr_update_time   = "0 minute"
reverse_cdr_call_origin    = false

/configurations/@[configuration_name]/gateways/@[gateway_name]/sip_privacy_options
use_alternate_anonymous_address = false

Parameters (json)

{
  "advanced_parameters" : {
    "call_recording_options" : {
      "called" : "",
      "calling" : "",
      "incoming_nap" : "(Any)",
      "outgoing_nap" : "(Any)",
      "record_all_legs_of_a_call_to_one_file" : false,
      "termination_name" : ""
    },
    "enable_call_recording" : false,
    "forward_connected_number" : false,
    "forward_redirecting_number" : true,
    "forward_redirection_number" : true,
    "forward_ss7_raw_message_bytes" : true,
    "forward_user_to_user_information" : true,
    "route_retry_mode" : "Call Alerted",
    "route_retry_relay_progress_msgs" : true,
    "route_retry_timeout" : "10 seconds"
  },
  "cdr_options" : {
    "cdr_mode" : "RADIUS CDR only",
    "enable_periodic_cdr_update" : false,
    "periodic_cdr_update_time" : "0 minute",
    "reverse_cdr_call_origin" : false
  },
  "cdr_system_id" : 5448,
  "routing_script" : "default_routing_script",
  "sip_privacy_options" : {
    "use_alternate_anonymous_address" : false
  },
  "translate_privacy_information" : false,
  "use_cdr_behavior" : true
}
