Steps to configure label routing for Group of DIDs to multiple outbound NAPs

Applies to: Tmedia 3.0, 3.2, 3.3; SBC 3.1, 3.3

Steps to configure label routing for Group of DIDs to a multiple outbound NAPs :

• The scenario is a group of the DIDs/Prefix will be sent the a multiple designated outbound NAPs in priority mode with some manipulations: E.g. DIDs/Prefix shall be sent to NAP_A and NAP_B with priority 1, NAP_C with priority 2 111 222 333 444 555 666 777 888 999

So a call with called number which has any of the above prefix will be sent to NAP_A and NAP_B in load-sharing mode, and if both NAP_A and NAP_B fail, it will then sent to NAP_C Below are the steps to configure that regarding the digitmap file and definition files:

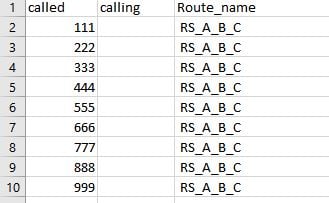

1- Compose the digitmap file - dm.csv, simple make it as below:

priority dm.csv

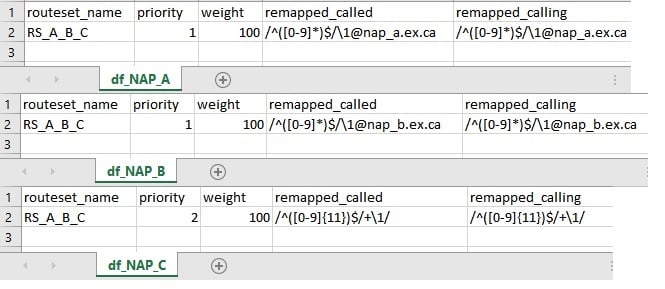

2- Compose definition file for NAP_A,NAP_B and NAP_C:

priority df.csv

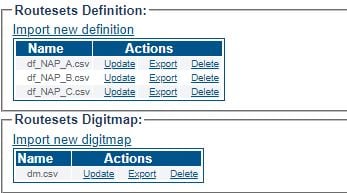

3- Import the dm.csv and the definition files via "File Db" menu

priority filedb

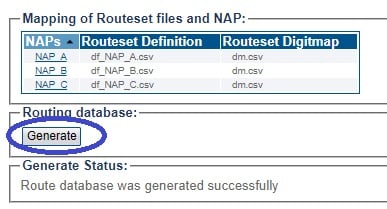

4- Associate NAP_A, NAP_B and NAP_C with the created dm.csv and the definition file, and generate routes

priority Routeset

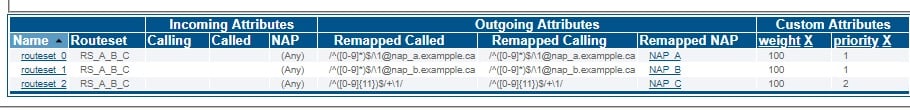

5- Verify the Routes

priority Routes

6- Activate the configuration
