Steps to configure label routing for Group of DIDs to a single outbound NAPs

Applies to: Tmedia 3.0, 3.2, 3.3; SBC 3.1, 3.3

Steps to configure label routing for Group of DIDs to a single outbound NAPs :

• This is the most basic use of Label Routing. The scenario is a group of the DIDs/Prefix will be sent the a single designated outbound NAP: E.g. DIDs/Prefix shall be sent to NAP_A 111 222 333 DIDs/Prefix shall be sent to NAP_B 444 555 666 DIDs/Prefix shall be sent to NAP_C 777 888 999

1- Create the digitmap file - dm.csv, simple make it as below:

Basic dm

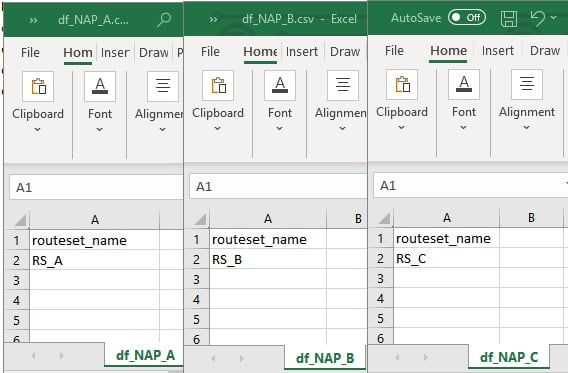

2- Create definition file for each NAP:

basic df.csv

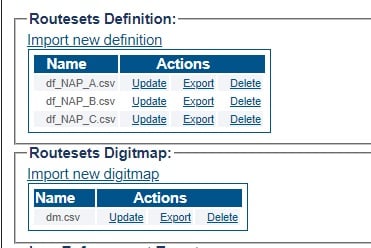

3- Import the dm.csv and the definition files via "File Db" menu

basic filedb

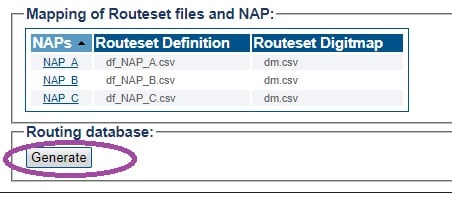

4- Associate NAP_A, NAP_B and NAP_C with the created dm.csv and the definition files, and generate routes

basic Routeset

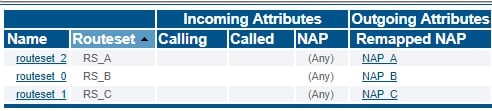

5- Verify the Routes

basic Routes

6- Activate the configuration
