Toolpack: Configuring RADIUS

Applies to: Tmedia 3.0, 3.2, 3.3; SBC 3.1, 3.3

This article describes how to configure RADIUS settings to capture CDRs, using a RADIUS server. RADIUS requests are sent from the system configured IP Interfaces or from the management port.

1- Select RADIUS from the navigation panel.

ConfiguringRadius 0

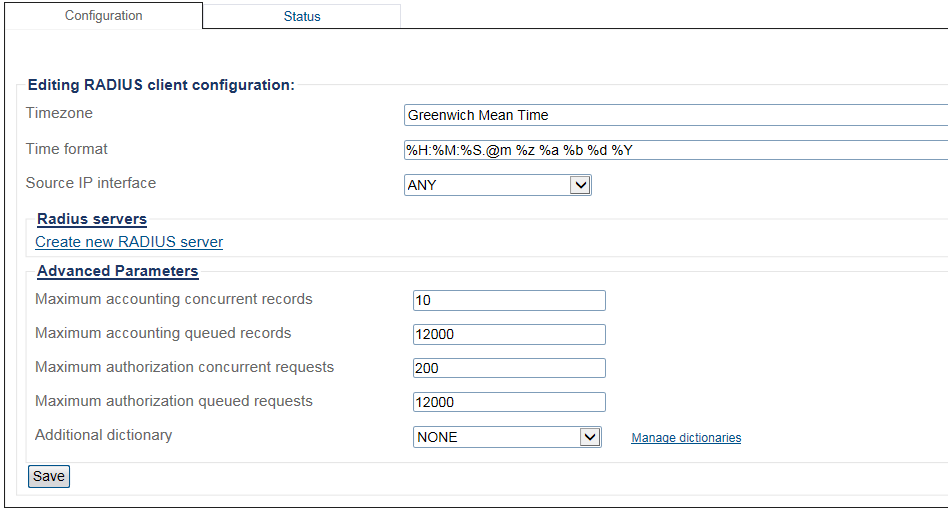

2- You can modify the following parameters:

• Timezone

• Time format

• Source IP interface

Advanced Parameters:

• Maximum accounting concurrent records

• Maximum accounting queued records

• Maximum authorization concurrent requests

• Maximum authorization queued requests

• Additional dictionary

• Click Create.

ConfiguringRadius B 1

3- Verify that the RADIUS client configuration successfully created message is displayed.

ConfiguringRadius A 2

Path

/configurations/@[configuration_name]/radius_clients/@[radius_client]

Parameters (text)

/configurations/@[configuration_name]/radius_clients/@[radius_client]
additional_dictionnary = ""
ip_interface           = "ANY"
time_format            = "%H:%M:%S.@m %z %a %b %d %Y"
timezone               = "Greenwich Mean Time"

/configurations/@[configuration_name]/radius_clients/@[radius_client]/accounting_queue
maximum_concurrent_records = 10
maximum_queued_records     = 12000

/configurations/@[configuration_name]/radius_clients/@[radius_client]/authorization_queue
maximum_concurrent_requests = 200
maximum_queued_requests     = 12000

Parameters (json)

{
  "accounting_queue" : {
    "maximum_concurrent_records" : 10,
    "maximum_queued_records" : 12000
  },
  "additional_dictionnary" : "",
  "authorization_queue" : {
    "maximum_concurrent_requests" : 200,
    "maximum_queued_requests" : 12000
  },
  "ip_interface" : "ANY",
  "time_format" : "%H:%M:%S.@m %z %a %b %d %Y",
  "timezone" : "Greenwich Mean Time"
}

List of Parameters

• Timezone

• Time format

• Source IP interface

Advanced

• Maximum accounting concurrent records

• Maximum accounting queued records

• Maximum authorization concurrent requests

• Maximum authorization queued requests

• Additional dictionary
