Toolpack Add Digitmap Files to the System

Applies to: Tmedia 3.0, 3.2, 3.3; SBC 3.1, 3.3

A Digitmap file is created using a comma separated value (CSV) format. Create a file with the desired Direct Inward Dialling (DID) numbers for the system. DO NOT put any spaces between commas and column names.

For example:

called,calling,routeset_name
403200,,Calgary_AB
514201,,Montreal_Qc
514202,,Montreal_Qc
514203,,Montreal_Qc

To add Digitmap files to the system:

1- Click FileDB in the navigation panel

AddDigitMapFile 0

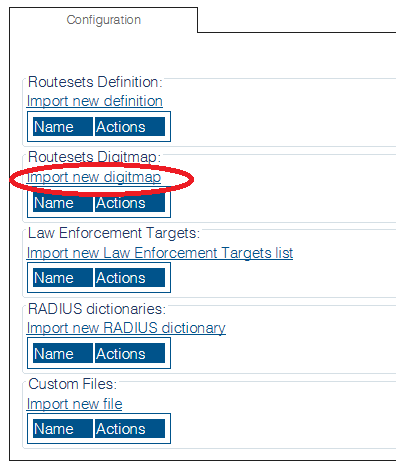

2- Click Import new digitmap

AddDigitMapFile 1

3- Click Browse and select the Digitmap that you wish to import.

• Click Import

AddDigitMapFile 2

4- The Digitmap files are displayed in the Routesets digitmap table.

AddDigitMapFile 3

You can use RestfulAPI to add/modify Digitmap Files. Please check the following link :Toolpack:Add Edit Digitmap Files RestFul A
