Creating a First Call Route

Applies to: Tmedia 3.0, 3.2, 3.3; SBC 3.1, 3.3

Call routing refers to the ability to route calls based on criteria such as origin, destination, time of day, service provider rates, and more.

Follow the procedure listed below to create primary and secondary routes:

1- Click Routes in the navigation panel

CreateCallRoute 0

2- Click Create New Static Route

CreateCallRoute 1

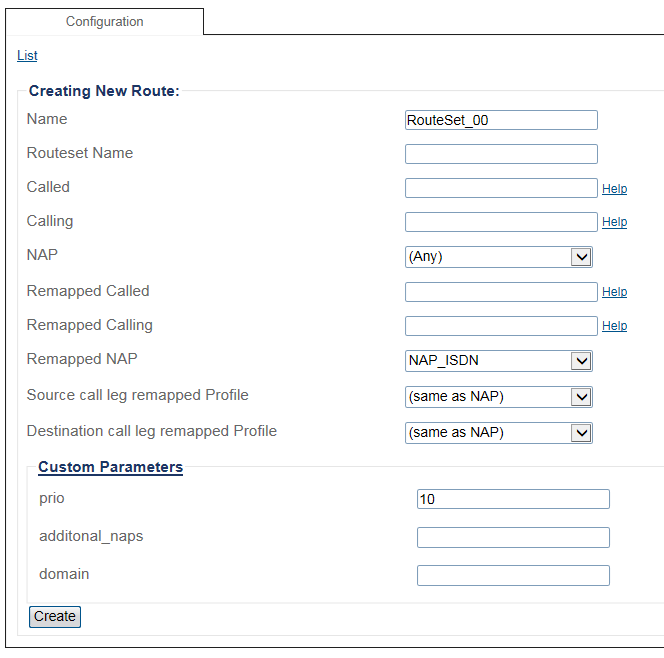

3- Create the new route:

  • Enter a RoutesetName for the route

  • Select a NAP, or leave empty to match calls from any NAP

  • Select a Remapped NAP

  • Click Create

CreateCallRoute 2 A

4- Verify that the "Route was successfully created" message appears, and that the new route is listed in the Routeset list

CreateCallRoute 3

Path

Parameters (text)

Parameters (json)

How to Create/Update a route with Restful API

You can find how to create/modify a route with Restful API in the following link:

Creating/Updating a Route with Restful API

List of Parameters

Custom Parameters
