Add Routset Definition Files to the System

Applies to: Tmedia 2.5, 2.6

The Routeset definition file uses a comma delimited CSV format in a text file, to store Routing Labels and optional custom parameters:

For example:

routeset_name, prio
Montreal_Qc,2
Calgary_AB,3

To add a Routeset definition file to the system:

1- Click FileDB in the navigation panel

FileDB 0 A

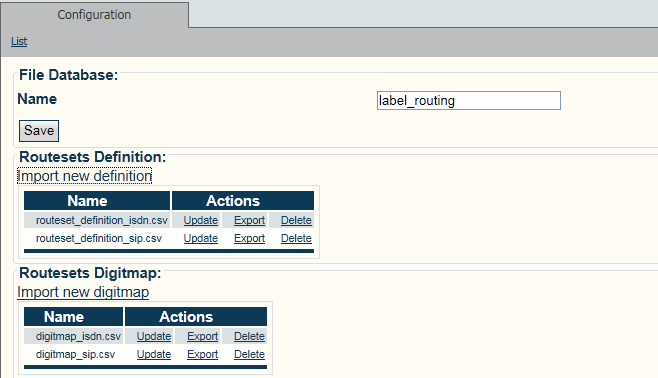

2- Click Import new definition

RoutsetDefinition 0 A

3- Click Browse and select the Routeset defintion file that you wish to import.

• Click Import

RoutsetDefinition 1 A

The Routeset definition files are displayed in the Routesets Defintion table.

RoutsetDefinition 2 A
