Add/Edit Digitmap files with RestFul API

You can Add/Edit digitmap file/s in your system with RestFul API using JSON format. The JSON must be in the following format:

{
    "***meta***": {
        "version": "3.1.135",
        "src_path": ""
    },
    "name": "digitmap_1.csv",
    "content": "called,calling,routeset_name\r\n1001,,NAP_1\r\n1002,,NAP_1\r\n1003,,NAP_1\r\n11,,NAP_2\r\n1200,,NAP_3\r\n1201,,NAP_3\r\n1202,,NAP_3\r\n1310,,NAP_6\r\n1310,,NAP_6\r\n1310,,NAP_6\r\n1220,,NAP_4\r\n1221,,NAP_4\r\n2105,,NAP_5\r\n2106,,NAP_5\r\n"
}

• name: digitmap file name

• \r\n: new line. Each digit/digits you entered must start with the new line.

Adding a new Digitmap File

You can add a new Digitmap file with the POST command:

POST http://ProSBCIP:12358/configurations/Configurationname/file_dbs/File_DB/routesets_digitmaps/

ProSBC will create a new Digitmap file from the name in the JSON file.

Example: We use the Postman tool in this example and the URL is:

http://192.168.1.26:12358/configurations/3CX/file_dbs/File_DB/routesets_digitmaps/

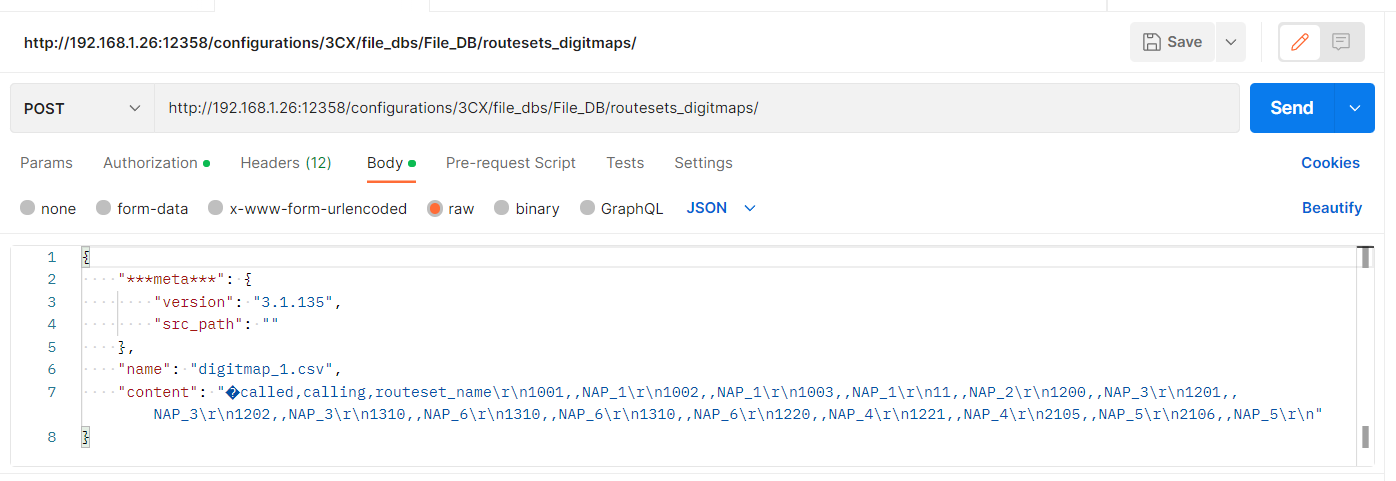

RestFul Digitmap Post Send

If the import is successful you will see the following information in the Postman Tool

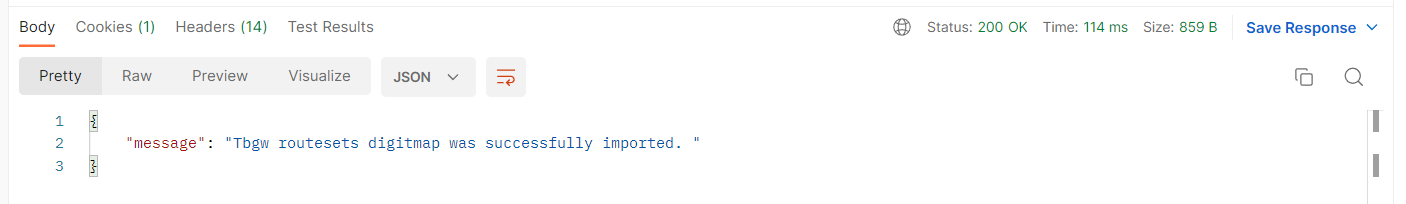

RestFul Digitmap Post Response

Updating a Digitmap File

You can update the existing Digitmap file with the PUT command:

PUT http://ProSBCIP:12358/configurations/Configurationname/file_dbs/File_DB/routesets_digitmaps/digitmapfilename%2Ecsv

Example: We use the Postman tool in this example and the URL is http://192.168.1.26:12358/configurations/3CX/file_dbs/File_DB/routesets_digitmaps/digitmap_1%2Ecsv

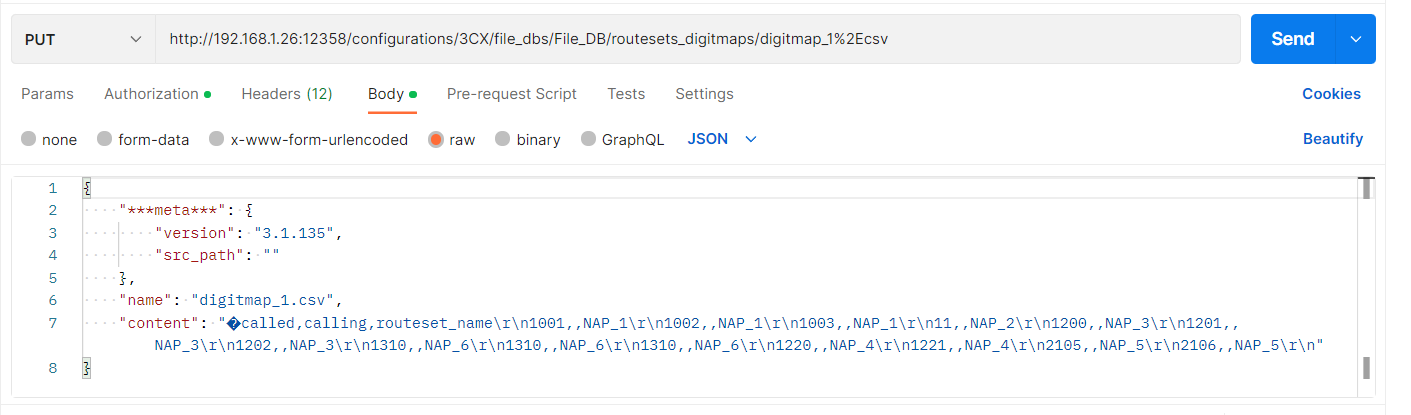

RestFul Digitmap Put Send

If the update is successful you will see the following information in the Postman Tool

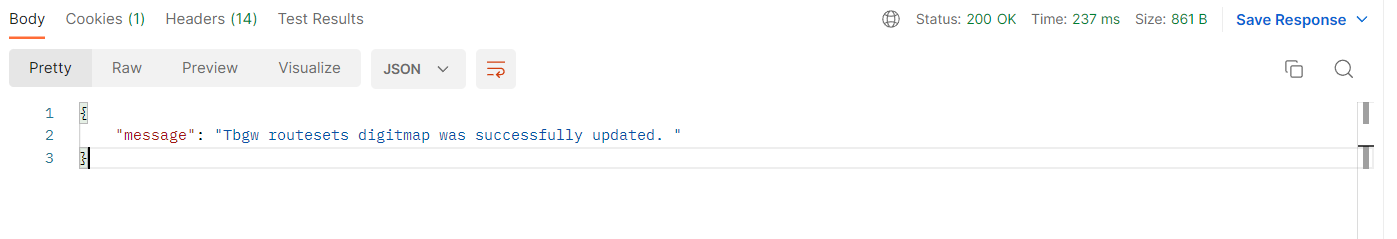

RestFul Digitmap Put Response

You can get more information about how to use RestFul API and Postman Tool from the following link Northbound_interface:RESTful
