Verifying the Application Path

Applies to version(s): v2.5, v2.6.

One important indication of the normal operation of an application is when the application path is displayed in the hardware status window.

To verify that the application path is displayed:

1. Select Instances from the navigation panel.

Toolpack v2.5 Navigation Panel Instances

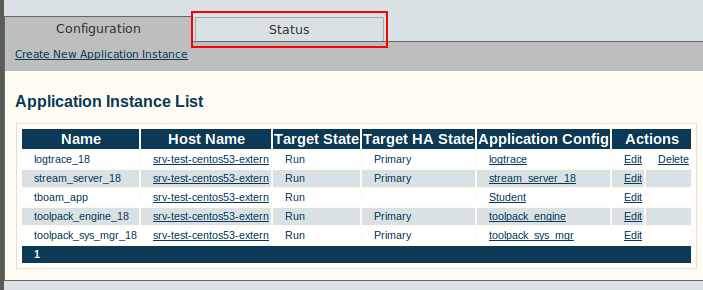

1. Click the Status tab, in the Application Instances window, to view the application path.

Toolpack v2.5 Application Instances Status

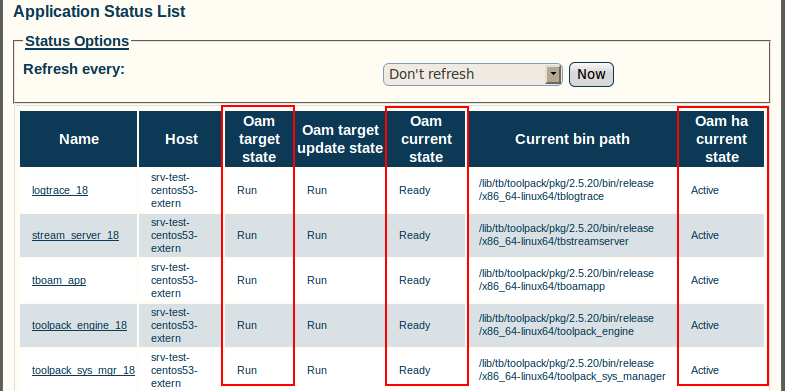

1. Verify that the application path is displayed:

• Verify that the target state is set to Run, the current state displays Ready, and the current HA state displays Active.

Toolpack v2.5 Application Instance Status 2
