Creating an M3UA Peer Application Server Process (ASP)
Applies to version(s): v2.5, v2.6, v2.7
Now that you have created an M3UA user part, you must create a new M3UA peer signaling process (PSP). A PSP is used to describe a remote SGP that is accessible through the M3UA system.
To create an M3UA Peer Signaling Process (PSP) on an ASP system:
1- Click Create New M3ua Peer Signaling Process in the M3UA network configuration window:
2- Configure the new M3UA PSP:
Enter a name for the PSP
Select Signaling Gateway Process (SGP) as the PSP type
Enter a destination port
Click Create
3- Verify that the "M3ua PSP was successfully created" message appears
4- Associate a SAP with the new PSP:
Select a SAP from the list of available SAPs
Click the "<<" button to associate it with the PSP

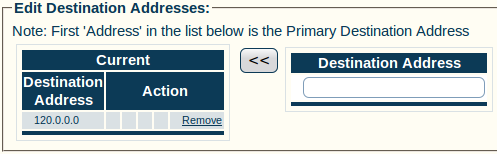

5- Enter a destination address for the PSP:
Enter a destination address
Click the "<<" button to add the destination address to the PSP
Verify that the "(your address) was successfully added" message appears
List of Parameters
