MTP2 Architecture

MTP Level 2 defines the functions and procedures of the signaling system for providing reliable transfer of signaling messages over a signaling link. The MTP2 layer is a service provider to the MTP3 Link layer. The MTP2 layer is a service user of line interfaces / line services as seen in the shown in the figure below.

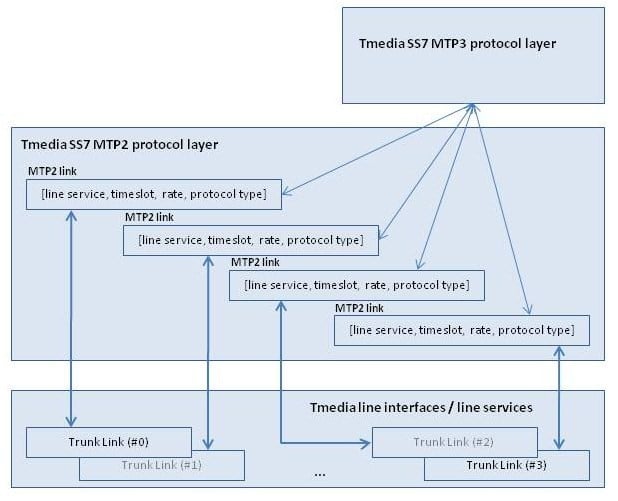

MTP2 architecture

MTP2 is used in conjunction with an above local MTP3 layer.

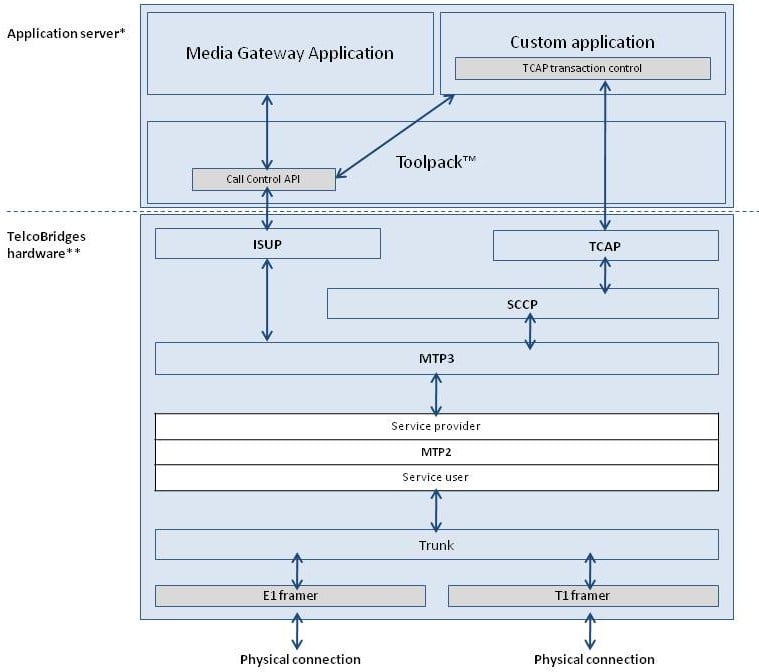

MTP2 layer hierarchy

A MTP2 Link must be associated with one line interface/service. It’s a 1-to-1 association. MTP Level 2 defines the functions and procedures of the signaling system for providing reliable transfer of signaling messages over a signaling link.

IMPORTANT NOTE: It is important to ensure that the received and transmitted clocks of the line interface/service were synchronized. This can be useful for removing/limiting undesirable FIB and BSN errors. (See section “Clock Configurations” in the TB640 user’s guide.)

Priorities

No pre-emption of data occurs in the process of being transmitted or requiring retransmission. Only a single congestion priority is supported for ANSI and ITU. For a TTC/NTT link, transmitted data buffers are prioritized based on the priority indicated by MTP Level 3.

Flow control

The MTP Level 2 software regulates data flow when resource utilization (such as buffer pool size or queue length) reaches specifies thresholds. For each threshold, MTP Level 2 performs one of the following actions:

  • Informs the layer manager about flow control.

  • Sends a link status signal unit with status "B" (busy).

  • Sends a flow control indication to the upper layer.

The MTP Level 2 software prevents deadlocks and overload conditions from occurring.
