MTP2 Advanced parameters

When creating a MTP2 link, a number of additional, more advanced parameters can be specified:

• Max Outstanding Frames

• Proving Emergency

• Max Frame Length

• Discard Frame In Congestion

• Signal Unit Error Rate Threshold

• Alignment Error Rate Emergency Threshold

• Maximum Alignment Attempt

• Flow Control Number Of Message Start

• Flow Control Number Of Message End

ITU and ANSI common link configurations

The following parameters refer to ITU and ANSI common link specific configurations:

• Error Correction

• Normal Proving

• Link Status Signal Unit Length

• Alignment Error Rate Normal Threshold

• Maximum Number Message Retransmission Cyclic Error Type

• Maximum Number Bytes Retransmission Cyclic Error Type

Screenshot

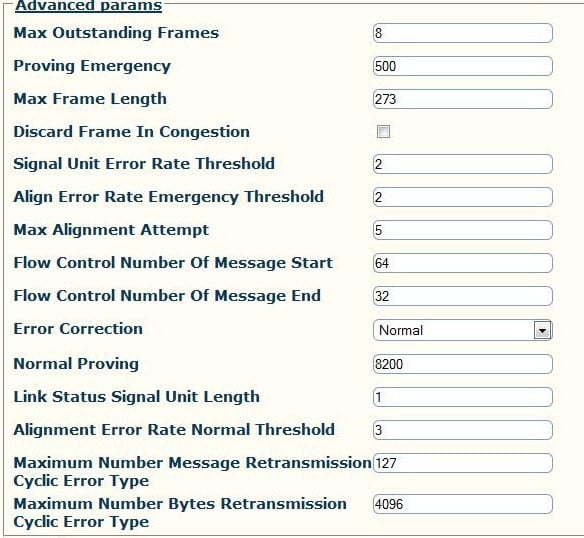

The following screenshot presents the various advanced parameters for the MTP2 link.

MTP2 advanced parameters
